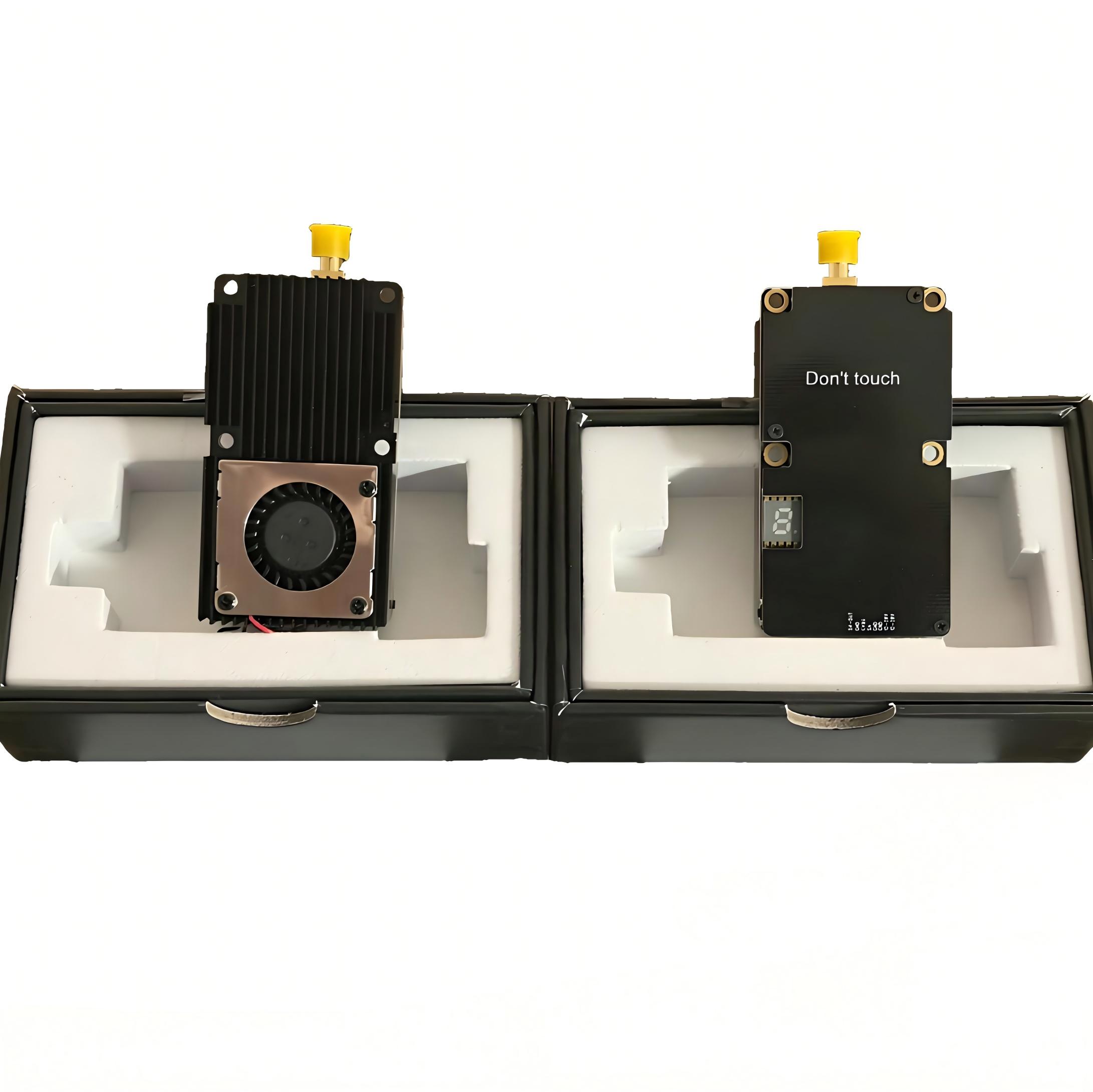

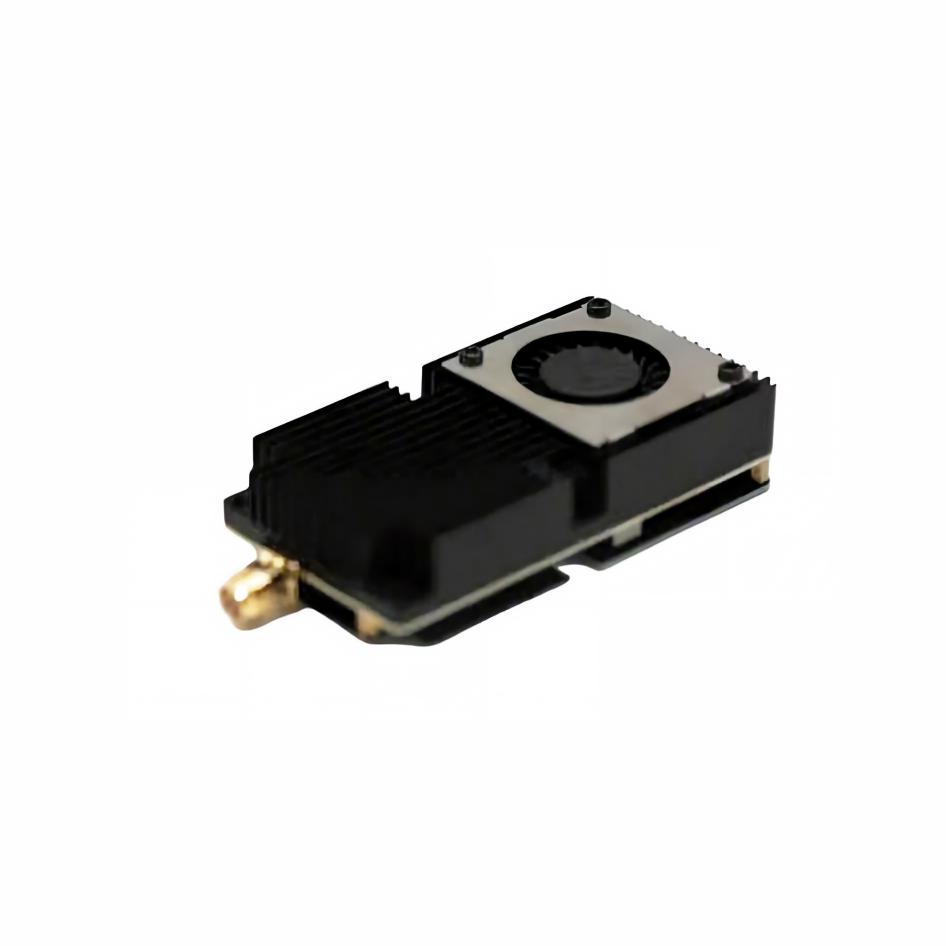

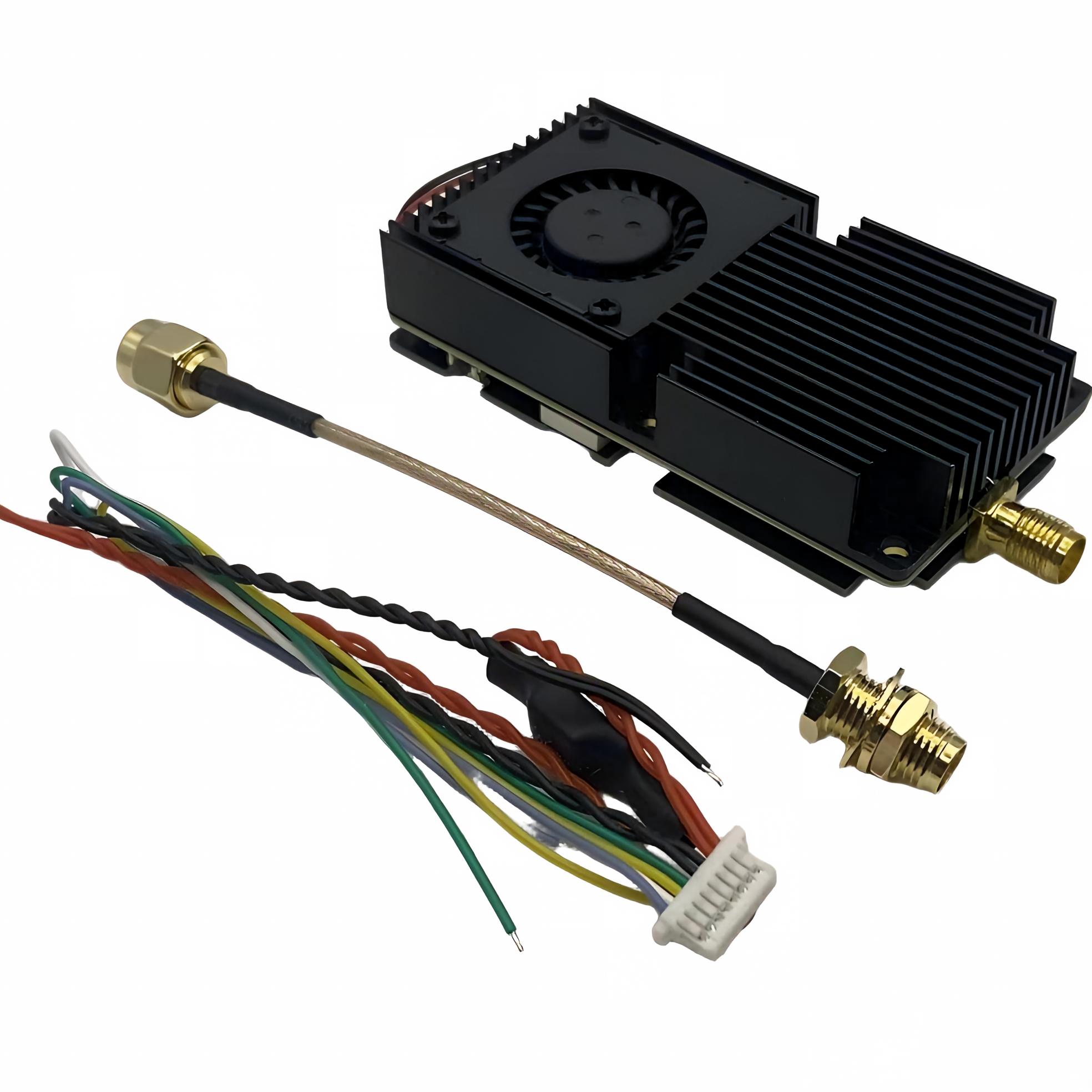

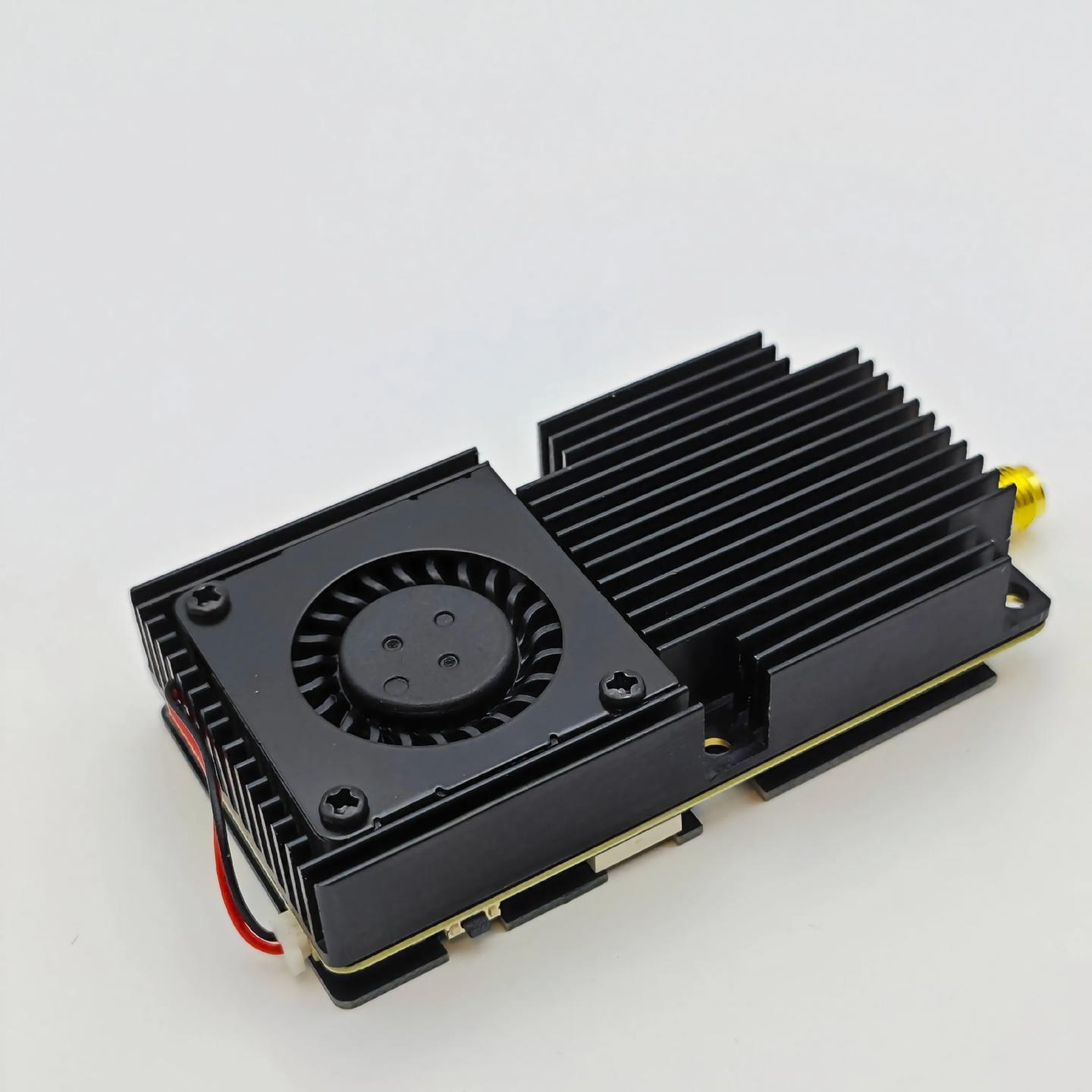

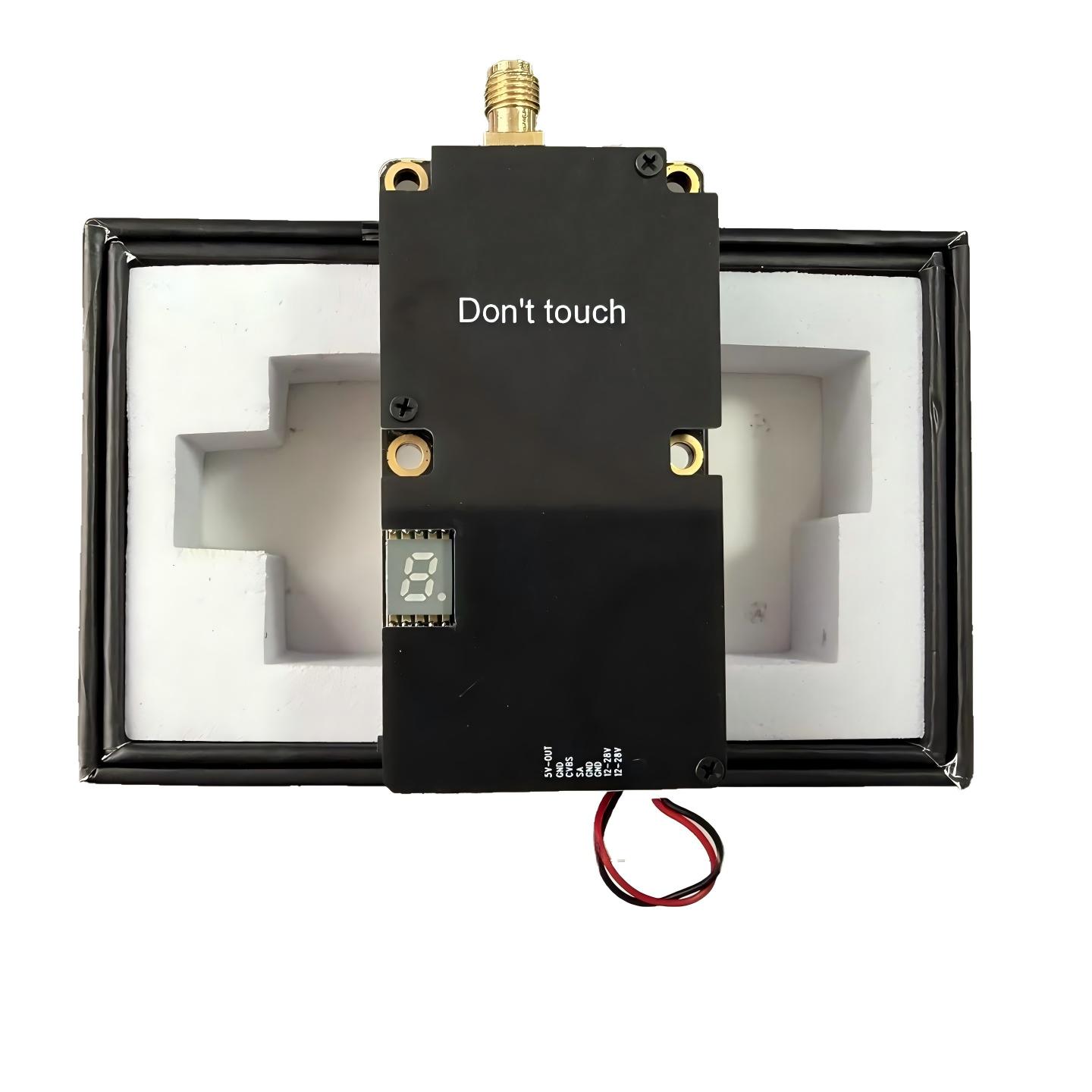

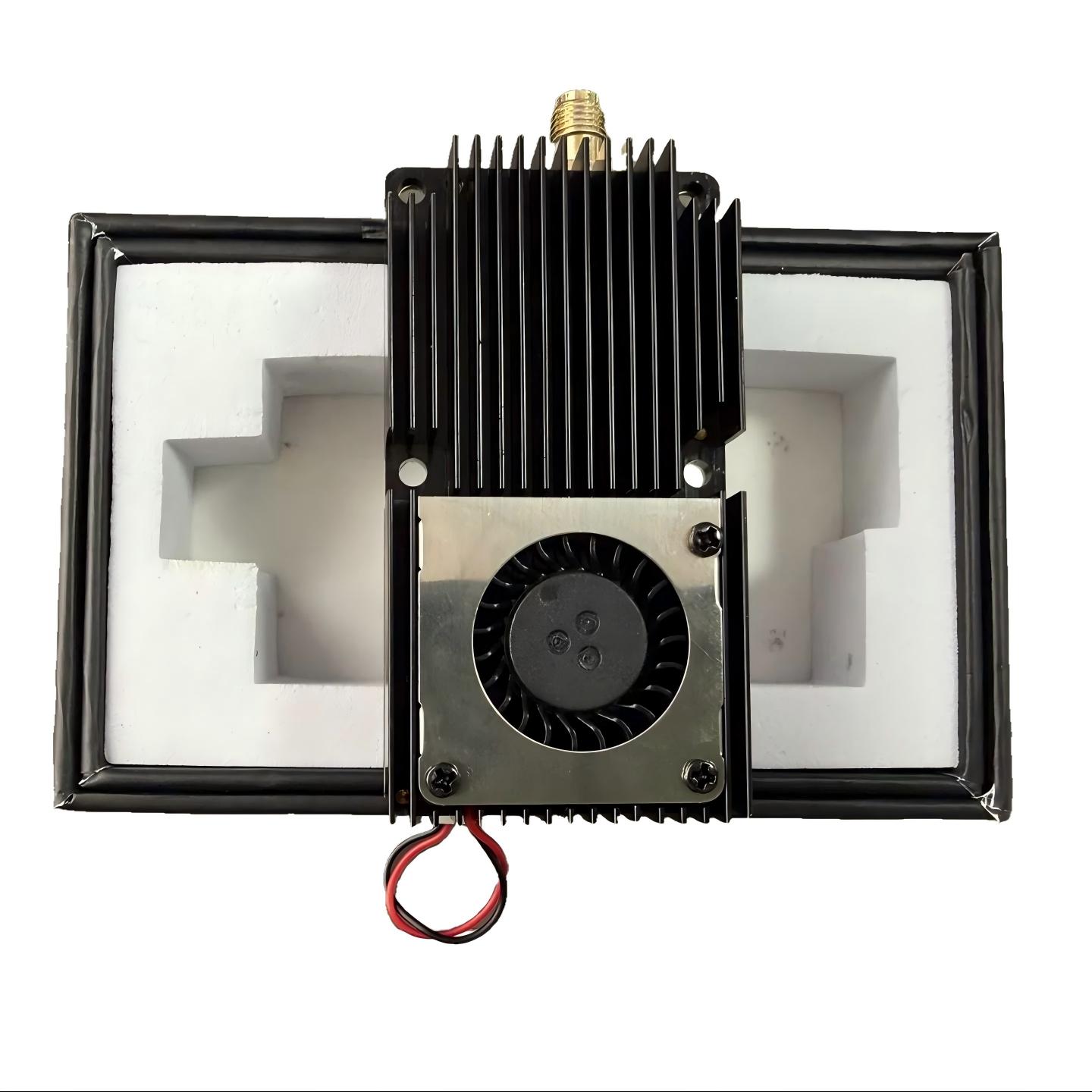

1~1.4G FPV Video Transmitter Module
Product Features:
Compatible with 1000-1400mHz frequency band for various FPV drones
16 channels to minimize interference and ensure signal stability
10W high output power for long-range stable transmission
Supports one customer-defined frequency point
All components protected under heat sink
4 Mounting Holes for Easier Installation
FEATURES
- Compatible with 1000-1400mHz frequency band for various FPV drones
16 channels to minimize interference and ensure signal stability
10W high output power for long-range stable transmission
Supports one customer-defined frequency point
All components protected under heat sink
4 Mounting Holes for Easier Installation
Technical Parameters
| Specifications | 1000-1400mhz |
| Input Voltage | 12-28V，6S battery is suggested |
| Output Voltage | 5V |
| Channels | 80CH |
| Power | 1W/2W/3W/4W/5W/6W/7W/8W/9W 10W |
| Mounting Hole | 30.5 * 30.5mm |
| Antenna Connector | SMA |
| Power Consumption | 12V/2.8A 28V/1.1A |
| Extra Feature | Custom Frequency/Built-in cooling fan&heat sink |
| Cable Connector | JST 8pin (Dual 12-28V Input and Dual GND) |
| Weight | 47g |
| Size | 68 * 68 * 15mm |
