7.2GHz 5W FPV VTX Video Transmitte
Product Features:
Supports Smart audio.
Features switchable power levels: 1W/2W/3W/4W/5W.

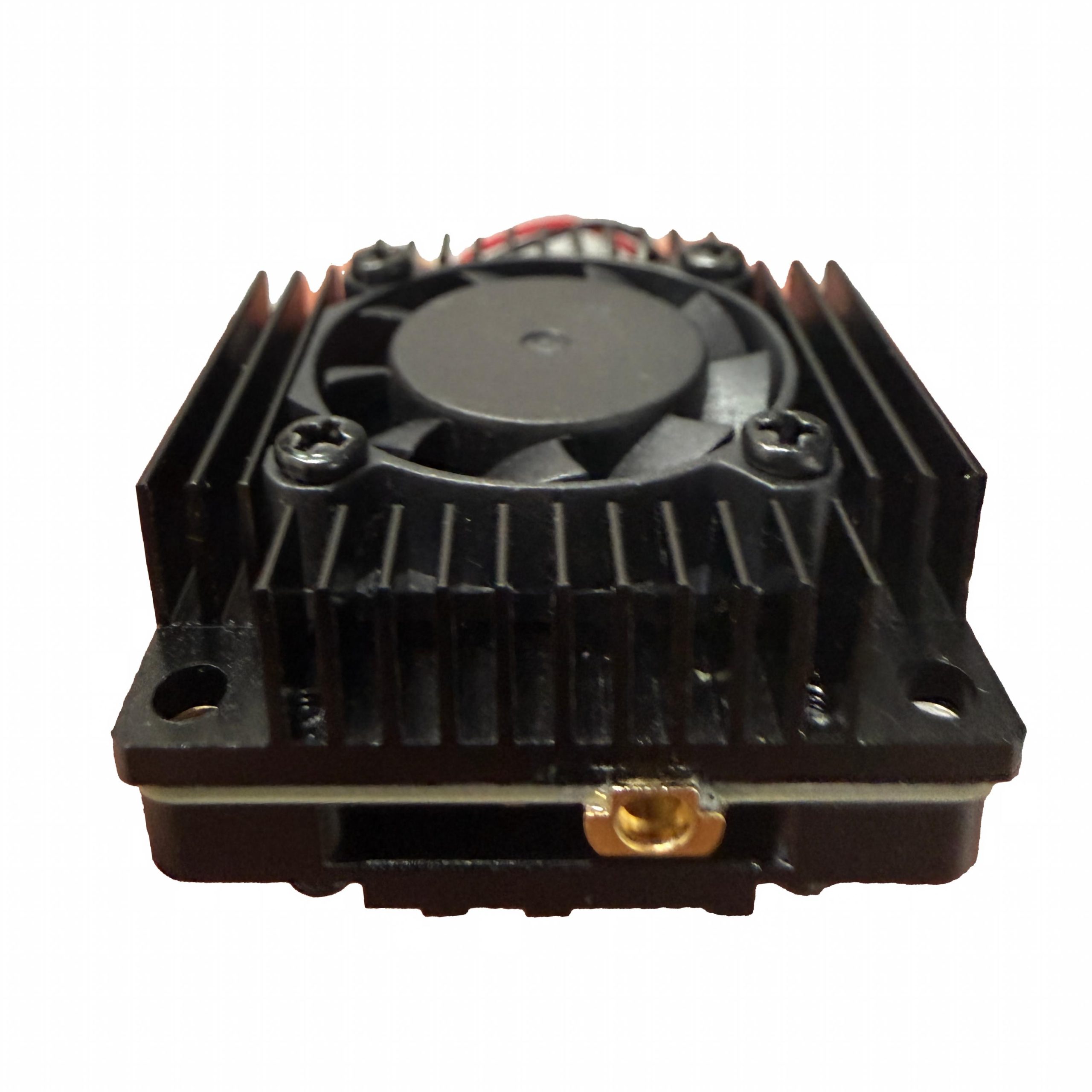

Equipped with a built-in cooling fan.
Enables OSD configuration via Smart audio.
64 channels to minimize interference and ensure signal stability
FEATURES
Supports Smart audio.
Features switchable power levels: 1W/2W/3W/4W/5W.
Equipped with a built-in cooling fan.
Enables OSD configuration via Smart audio.
64 channels to minimize interference and ensure signal stability
Technical Parameters
| Input Voltage | 12V to 28V, suggest 6S battery |
| Extra Features | Smart audio 5000mW |
| Power Supply | 5V Camera @ under 500mA max |
| Output Power | 1W/2W/3W/4W/5W |
| Microphone | No Supported |
| Antenna Connector | MMCX |
| Cable Connector | JST, 6pin |
| Dimensions | 36 (W)x36 (L) mm, 30.5 x 30.5mm (hole) |
| Cable Connector | JST 6pin (Single 12-28V input and single ground) |
| Weight | 24.5g |

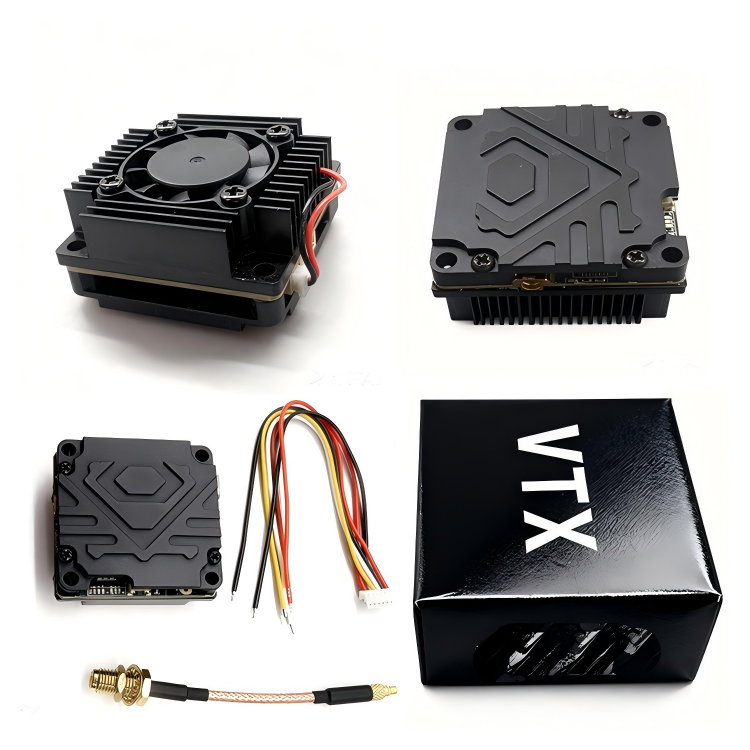

| Kit Contents | 1x VTX,1x cable, 1x pigtail |
Button Control Instructions：
Press and hold the button to select a function, and the corresponding green indicator light will turn on.
Press the button briefly to select a gear, and the corresponding blue indicator light will turn on.
1.The power indicator light is on.
2.The channel indicator light is on.
3.The frequency band indicator light is on.
Pit Mode:
The VTX is fully accessible via smart audio.
It supports Pit Mode.
Slow Power On:
The VTX will wait for 5 seconds before turning on power amplifier.
The 5 seconds slow power on will protect the VTX from being burned by maximum instantaneous power.

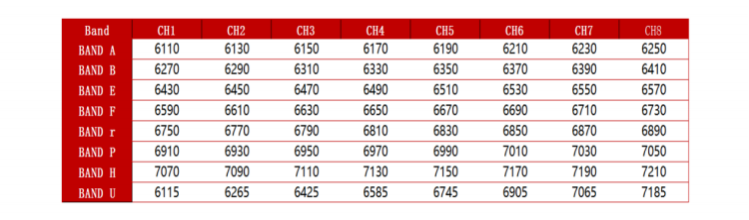

Band and Channel Frequency Table:
