Wireless Video data links #2

OFDM Drone Radio Transceiver

Communication Radios

XK-F313E is a Broadband wireless video and data transmission system. Two-way communication: Video+data camera control/drone control/telemetry 3 in 1. Point to Point; Point to Multi-Points relay mode, AdHoc networks.

Supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.

  • Working frequency can be adjusted manually and automatically
  • The mapping mode is adjustable, including BPSK, QPSK, and 16QAM.
  • LDPC encoding rate is adjustable, supporting 1/2, 2/3, 3/4, and 5/6.
  • TDD working mode.

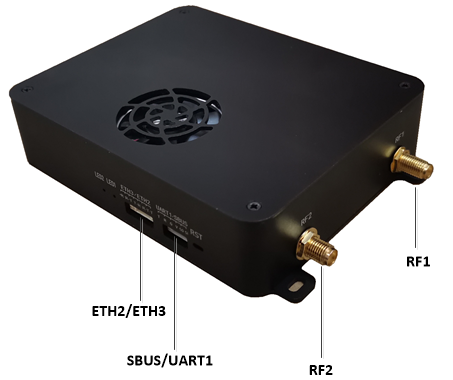

  • Support Ethernet, serial port, SBUS/PPM.
  • Support AES128, AES256 encryption

XK-F313E FEATURES

  • Non-line-of-sight transmission, long transmission distance, and strong anti-interference capability.
  • With LDPC error correction coding, low decoding threshold.
  • With Rich functional interfaces.
  • Good RF index, high signal-to-noise ratio, and small stray.
  • Low power consumption.
  • Simple/Easy to use.

Xk-F313E
Xk-F313E
Xk-F313E

Technical Parameters

ItemAir UnitGround Unit
Operation VoltageDC12V~DC30V, Standard input DC16.8VDC12V~DC30V, Standard input DC16.8V
Power Consumption19W13W
ModulationOFDMOFDM
FEC1/2、2/3、3/4、5/61/2、2/3、3/4、5/6
ConstellationBPSK、QPSK、16QAMBPSK、QPSK、16QAM
DuplexTDDTDD
Frequency1.400GHz-1.495GHz, 2.4GHz-2.483GHz, (Customizable)1.400GHz-1.495GHz, 2.4GHz-2.483GHz, (Customizable)
Tx Power≤33dB(ok to set)≤33dB(ok to set)
Bandwidth10MHz2.5MHz
Latency3ms~8ms3ms~8ms
Data interfaceUART(TTL/RS232)/SBUSUART(TTL/RS232)/SBUS
Serial port rate115200bps115200bps
Downlink Throughput2 Mbps~15 Mbps(10MHz)2 Mbps~15 Mbps(10MHz)
Working temperature-30℃~60℃-30℃~60℃
Storage temperature-40℃~75℃-40℃~75℃
Working humidity10%~90%10%~90%
Antenna2.5dBi7dBi

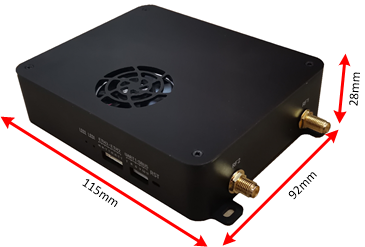

Dimensions107*86*27.8mm107*86*27.8mm
Weight≤260g≤260g
