Broadband Wireless System XK-F303E

XK-F303E

XK-F303E-100 is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance, and other characteristics, Support the transmission of network data, flight control data, PTZ control data, and remote control data at the same time.

The central node of XK-F303E can be used under a point-to-point or a point-to-multipoint mode. Two devices are subject to the point-to-point mode, while three or more devices must be subject to the point-to-multipoint mode.

Therefore, only a slave node is needed to expand the application of the device. It has been provided with an encryption function, so channel encryption keys can be set independently.

The XK-F303E supports the transparent transmission protocol, and can be used to transmit flight control and other mounted data simultaneously.

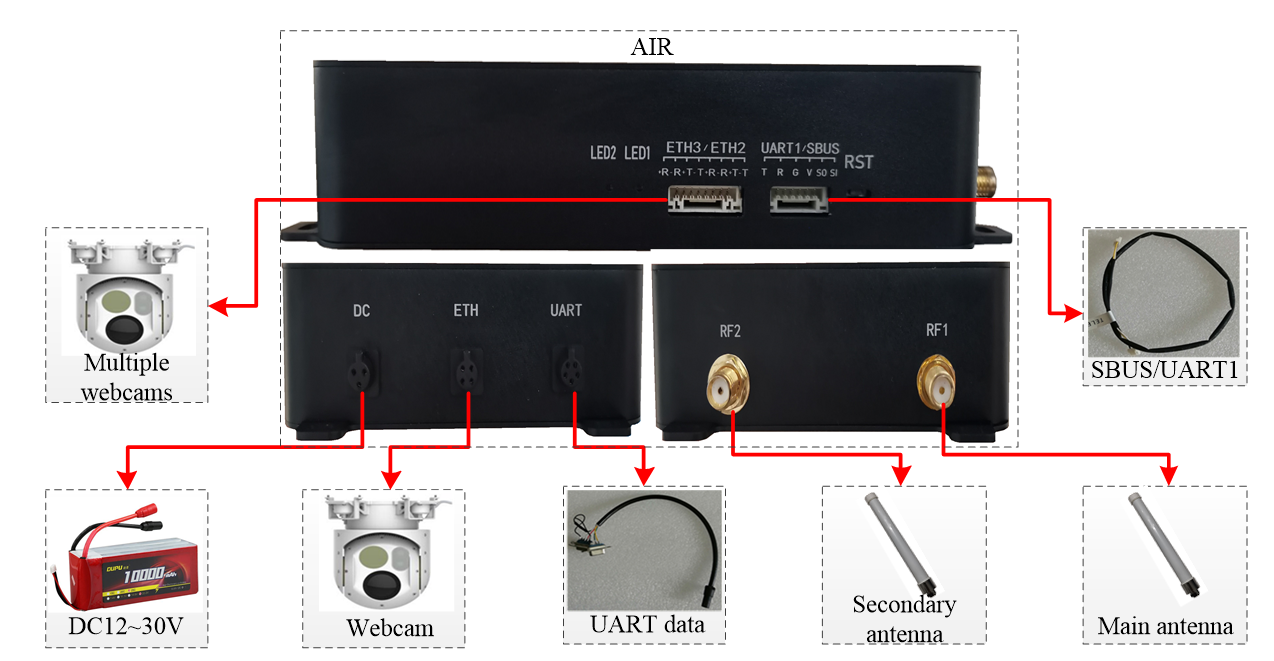

The ground end can be used to exchange data with the ground station through a serial port or network port (UDP/TCP). It supports serial port and SBUS transmission functions, and thus the distance f UAV control link can be extended.

TIt supports simultaneous transmission of network data, flight control data, PTZ control data and remote control data encoded by HD cameras.

Features

  • * Wide frequency range and wide bandwidth are supported.
  • * Rich control interfaces, and a High carrier noise ratio.
  • * Wide input voltage range(DC12 ~ 30V).
  • * Low power consumption.
  • * Max downlink configuration rate: 30m, bandwidth: 20m
  • Max uplink configuration rate: 26m, bandwidth: 20m.
  • * Support OTA upgrade, local and remote upgrade.
  • * Adaptive frequency hopping, strong anti-interference ability.

Functions

* The working frequency band is 800MHz / 1.4GHz , and the frequency point can be customized
* The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz, and 20MHz.
* The mapping mode is adjustable, including QPSK, 16QAM, and 64aqm.
* Support Ethernet, serial port, and SBUs.
* Support AES128 and AES256 encryption.

Technical Parameters

ItemSpec/Parameters
Air UnitGround Unit
Operation
Voltage
DC12V~DC30V,Standard input DC22V
Power
Consumption
≤11W @ 33dBm
ModulationOFDM
Data
interface
UART(TTL/RS232)/SBUS
Frequency800MHz/1.4GHz, Customizable
Channel rateUplink(Max): 30Mbps,Downlink(Max):26Mbps
Bandwidth3/5/10/20MHz
Latency≤15ms
Tx
Power
≤33dBm(Adjustable)
Working temperature-30ºC~60ºC
Storage
temperature
-40ºC~75ºC
Antenna2.5dBi16dBi
Communication
Protocol
IEEE802.3,Transparent
serial data
CommunicationPoint to  Point, Point to Multi-Points relay mode
Range100Km
Dimensions115*92*28mm
Weight≤300g
