ELRS TX 300Mhz 2.5W High-frequency head ExpressLRS TX Module 2.5W High Performance Compatible With Betafpv Flight Control Radiomaster RC Control

1 50

2 37

3 42

4 39

5 40

6 40

7 35

ELRS 2.5W TX High-frequency head for FPV Drone

FEATURES

Output power: 100mW/250mW/500mW/1000mW/2500mW
Refresh rate: 25Hz/50Hz/100Hz/200Hz
Input Voltage: 5-8.4V(2S)
Input Voltage: 5-12V(2S)
Main control IC: ESP32+LR1121, backpack chip ESP8285

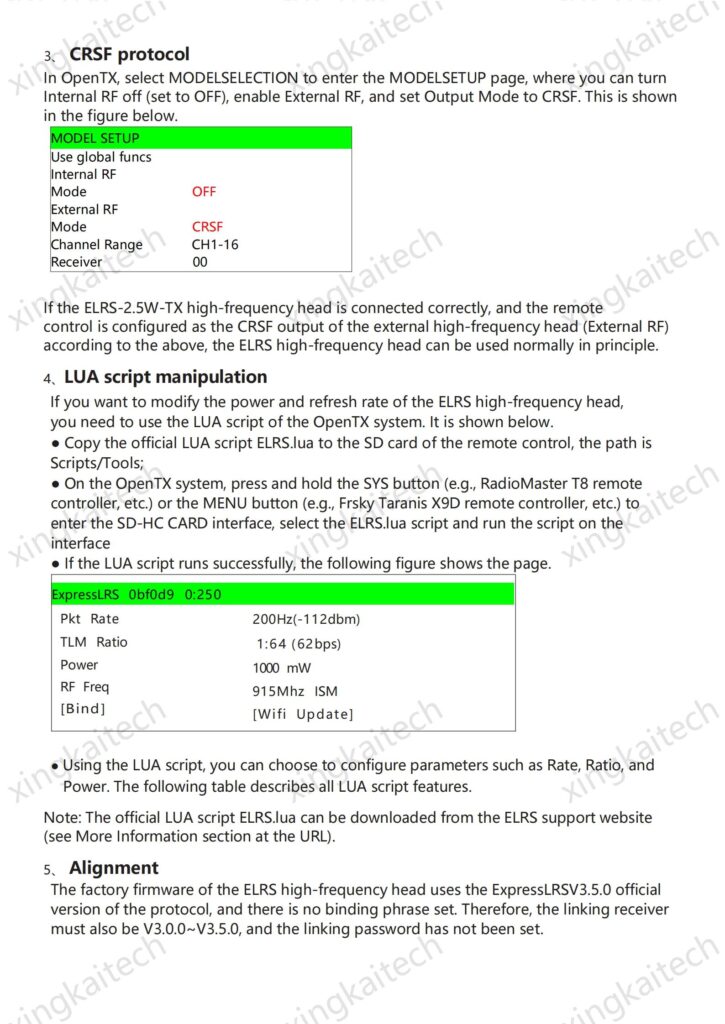

By default, the ELRS-2.5W-TX high-frequency head only accepts signals from the Crossfire Serial Data Protocol (CRSF). The high-frequency head interface of the remote control needs to support CRSF signal output. The following takes the OpenTX remote control system as an example to illustrate how to configure the remote control to output CRSF signals and use the LUA script to control the ELRS high-frequency head.

1 54

2 39

3 44

4 40
