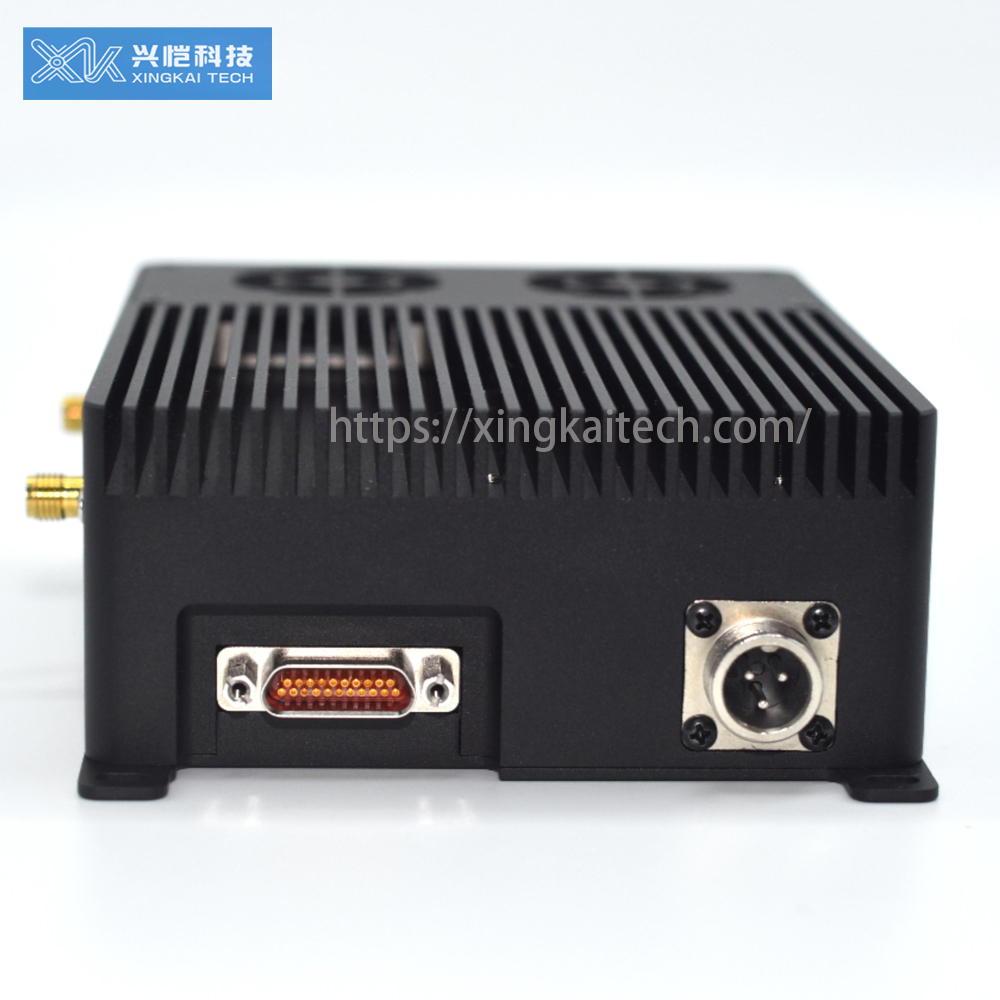

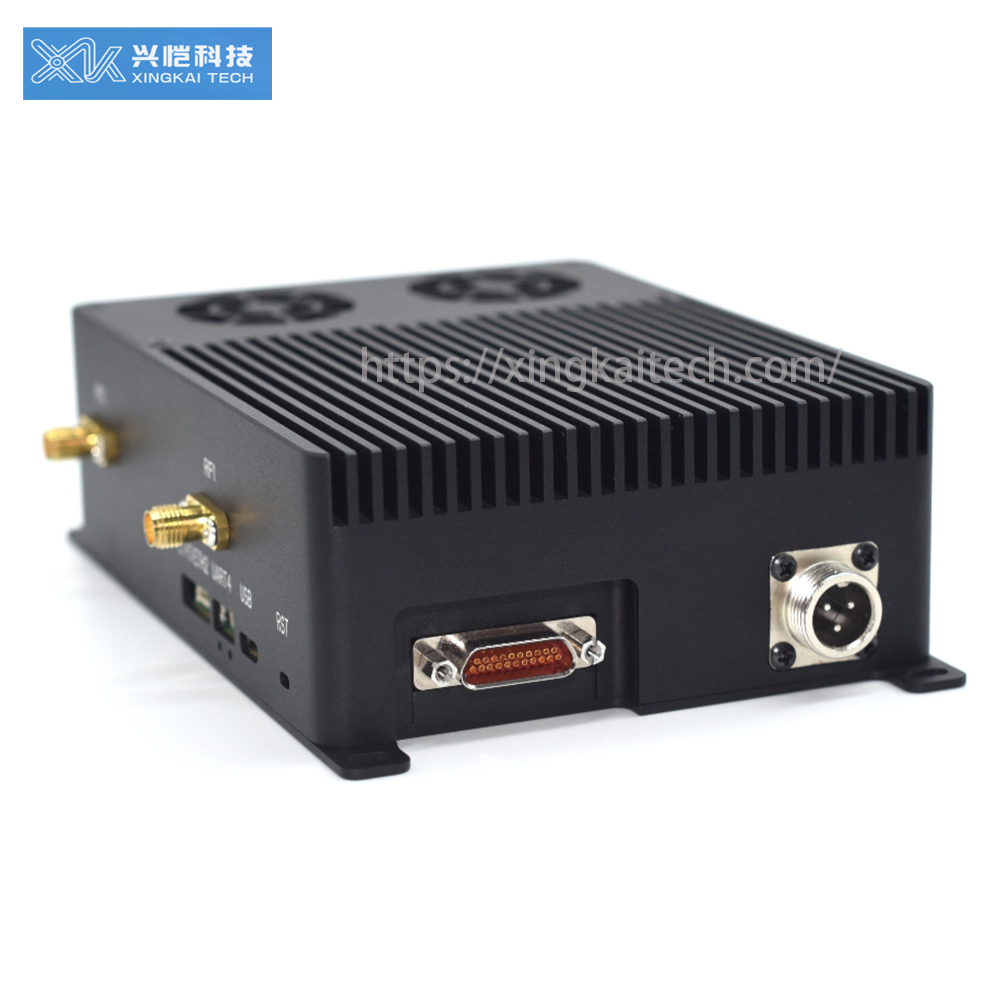

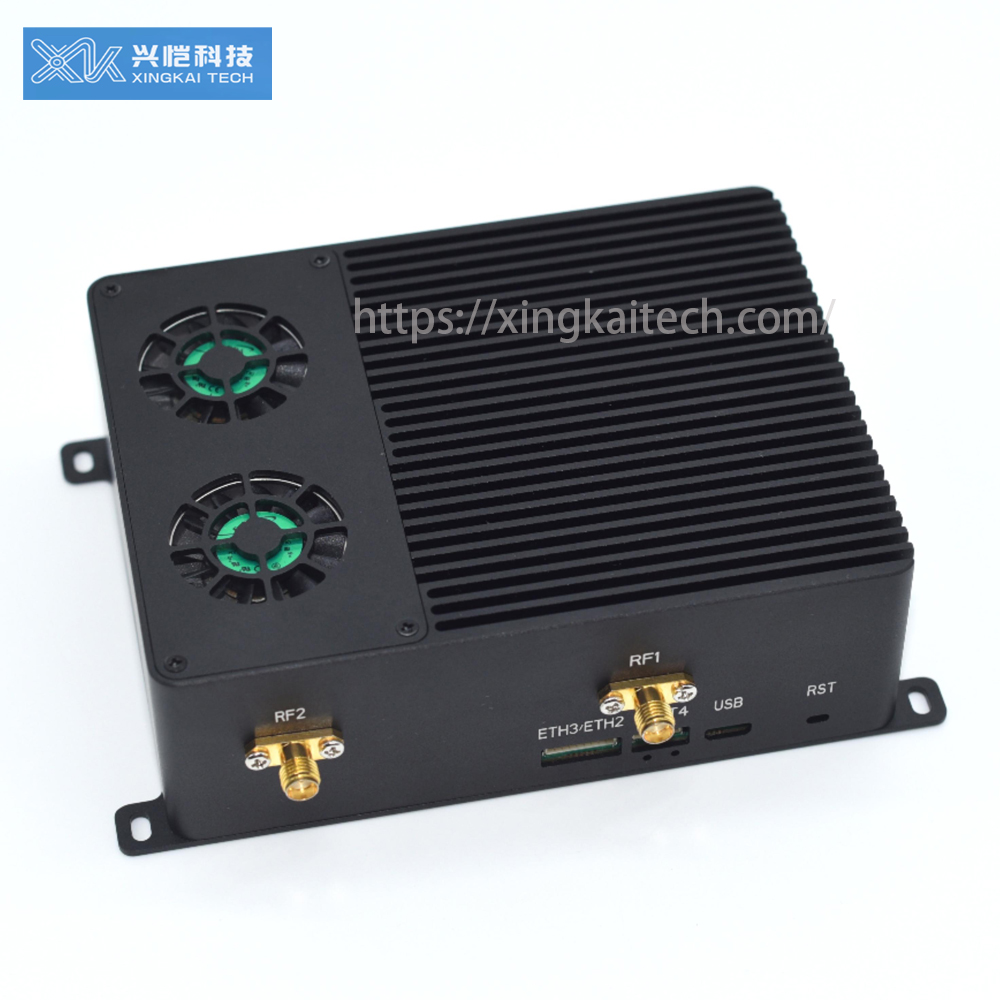

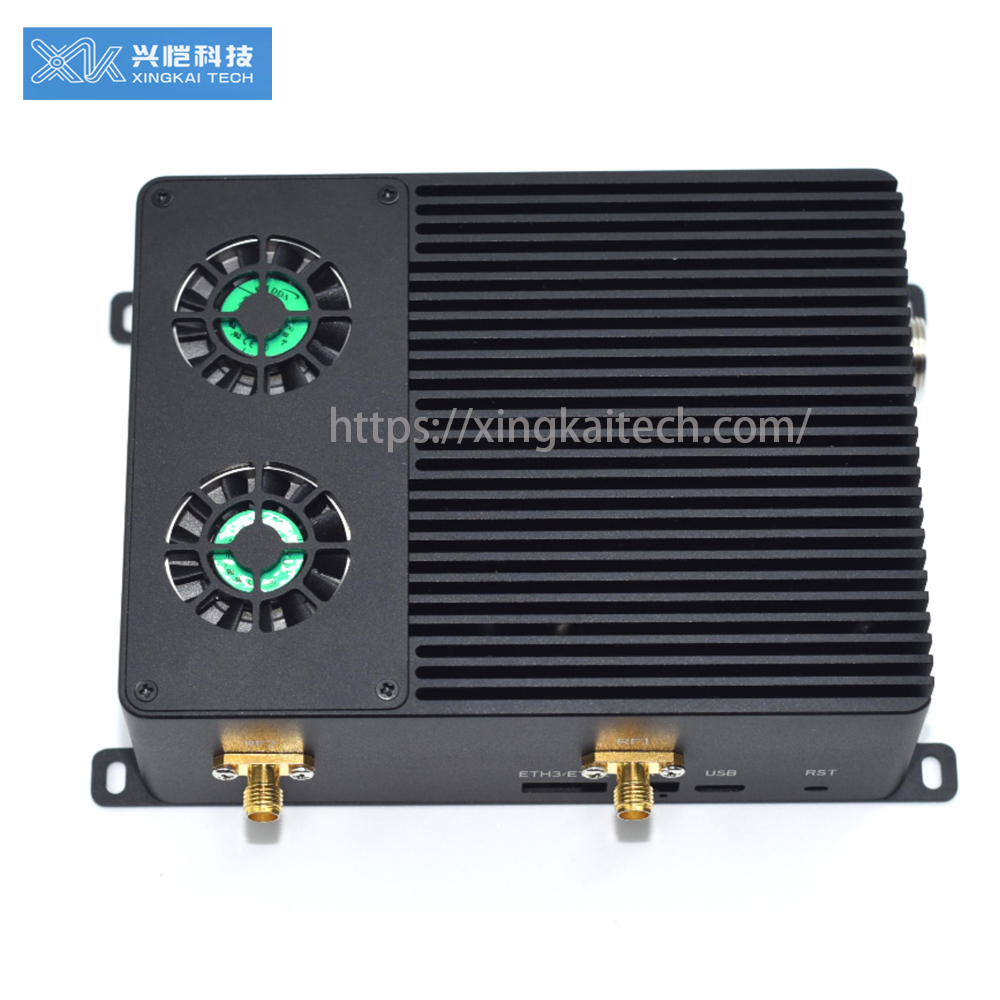

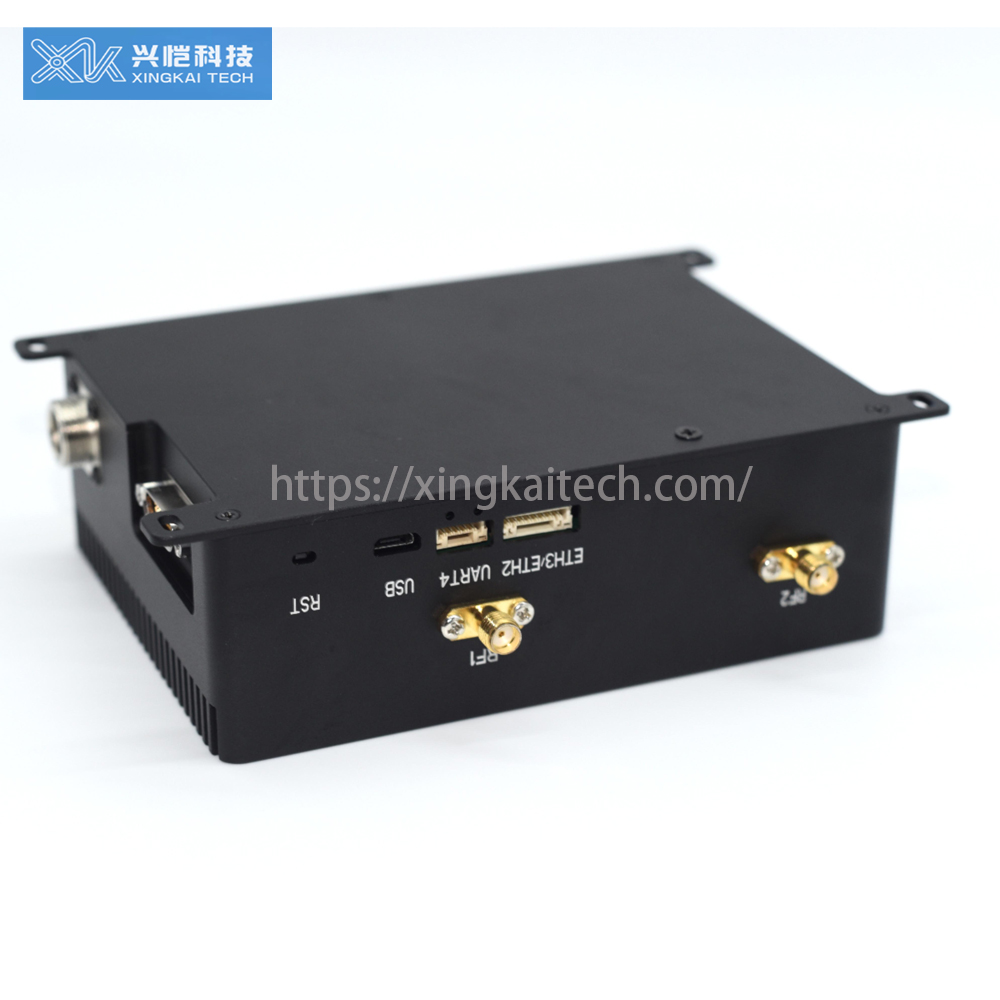

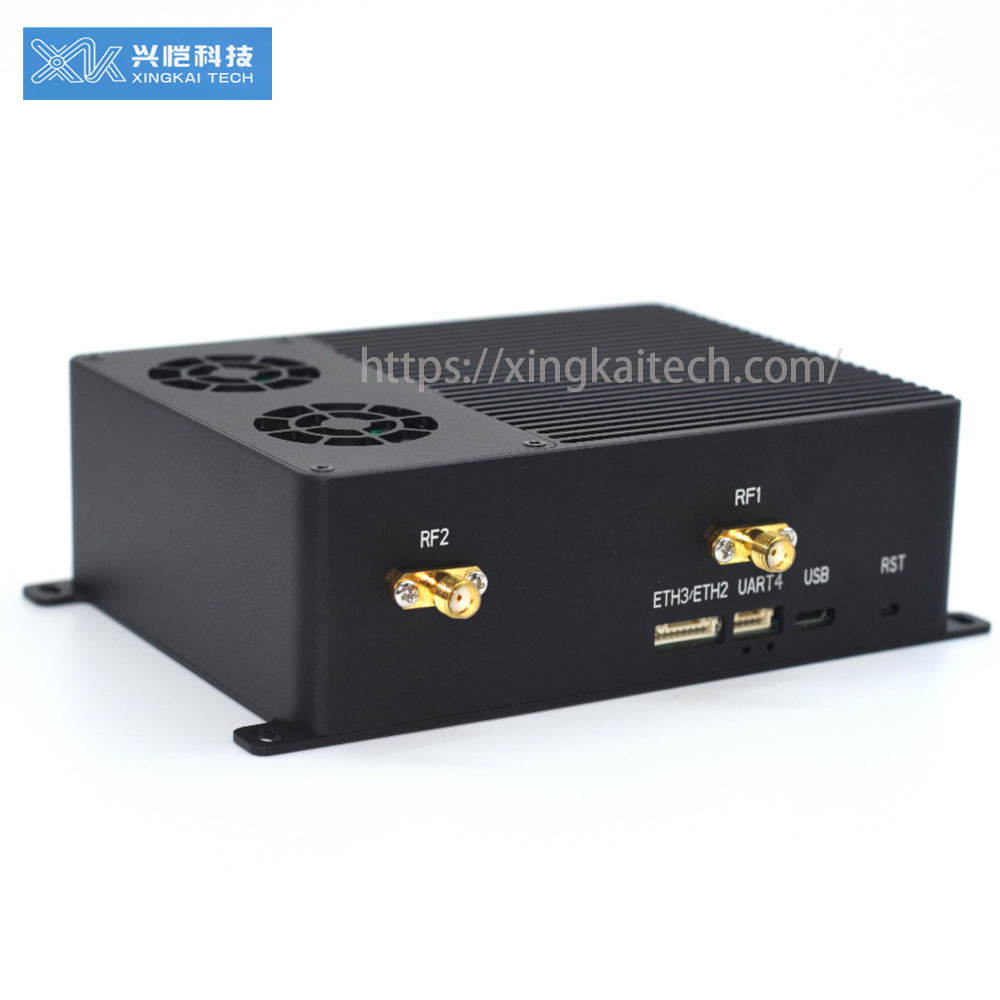

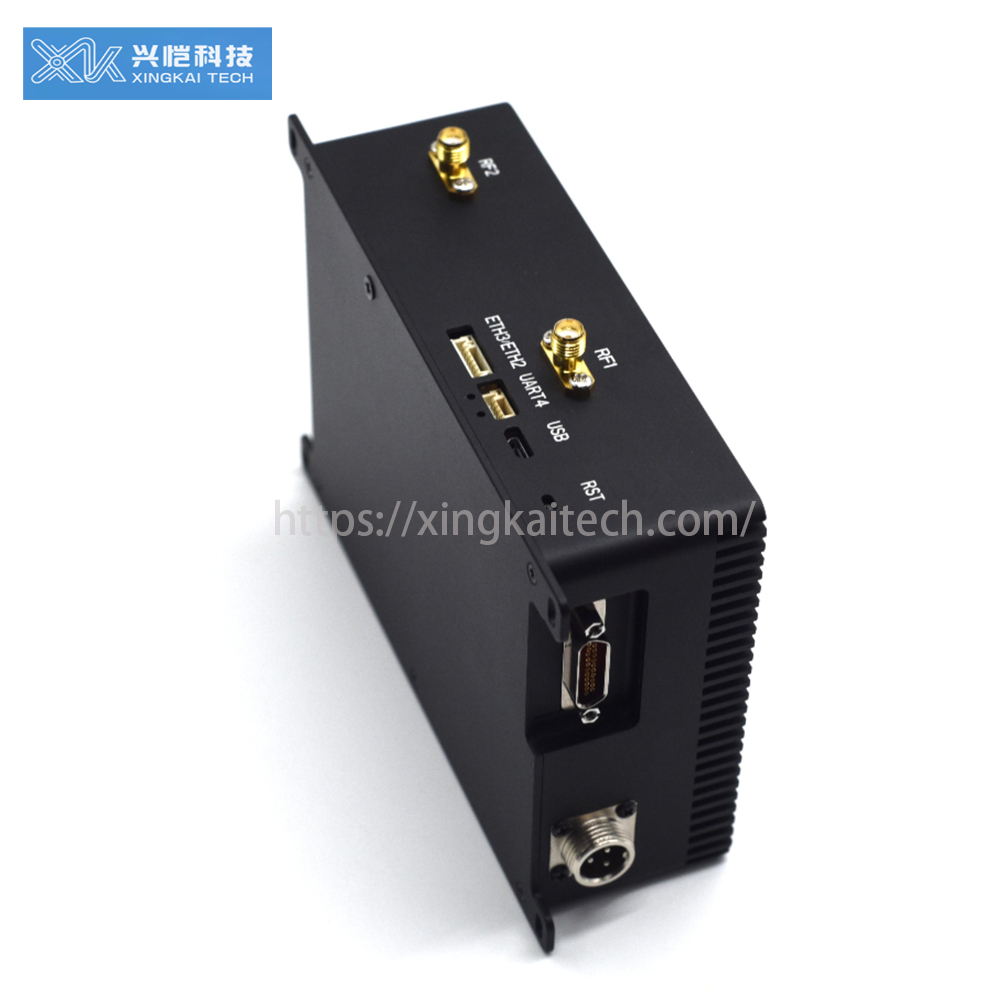

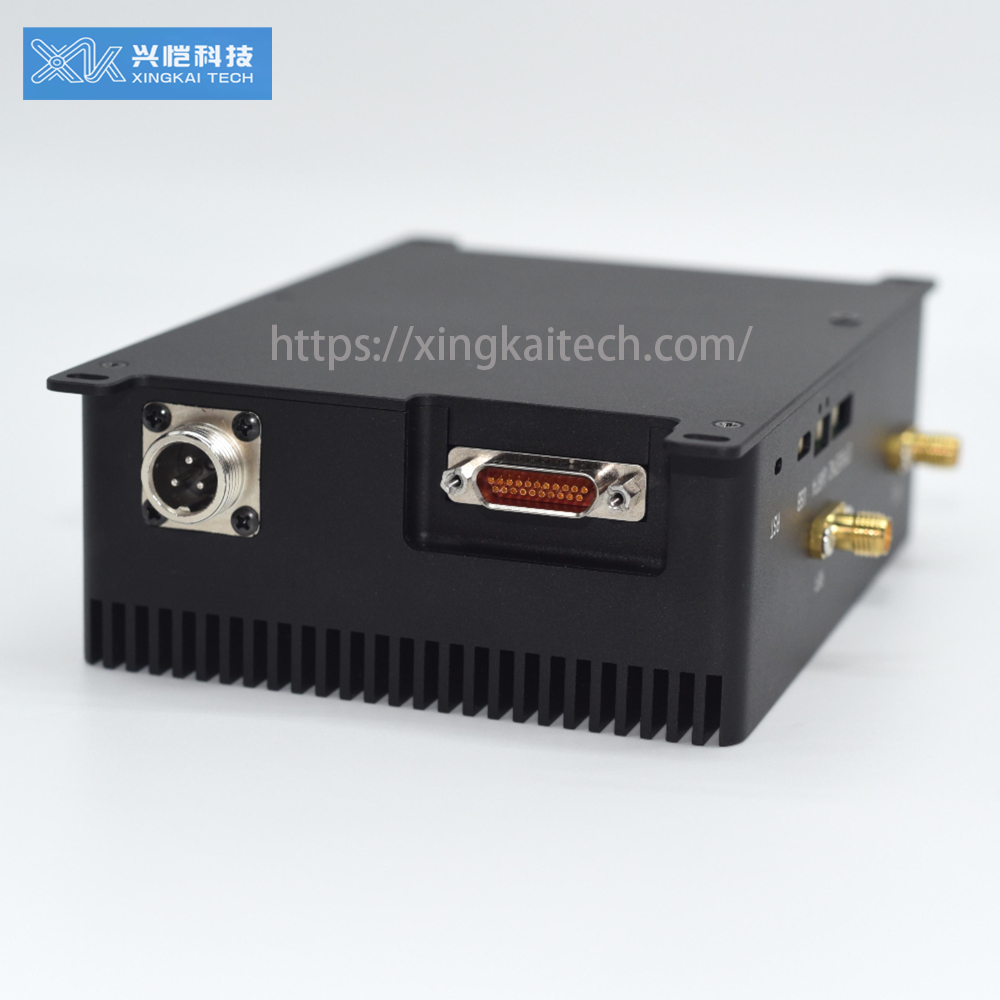

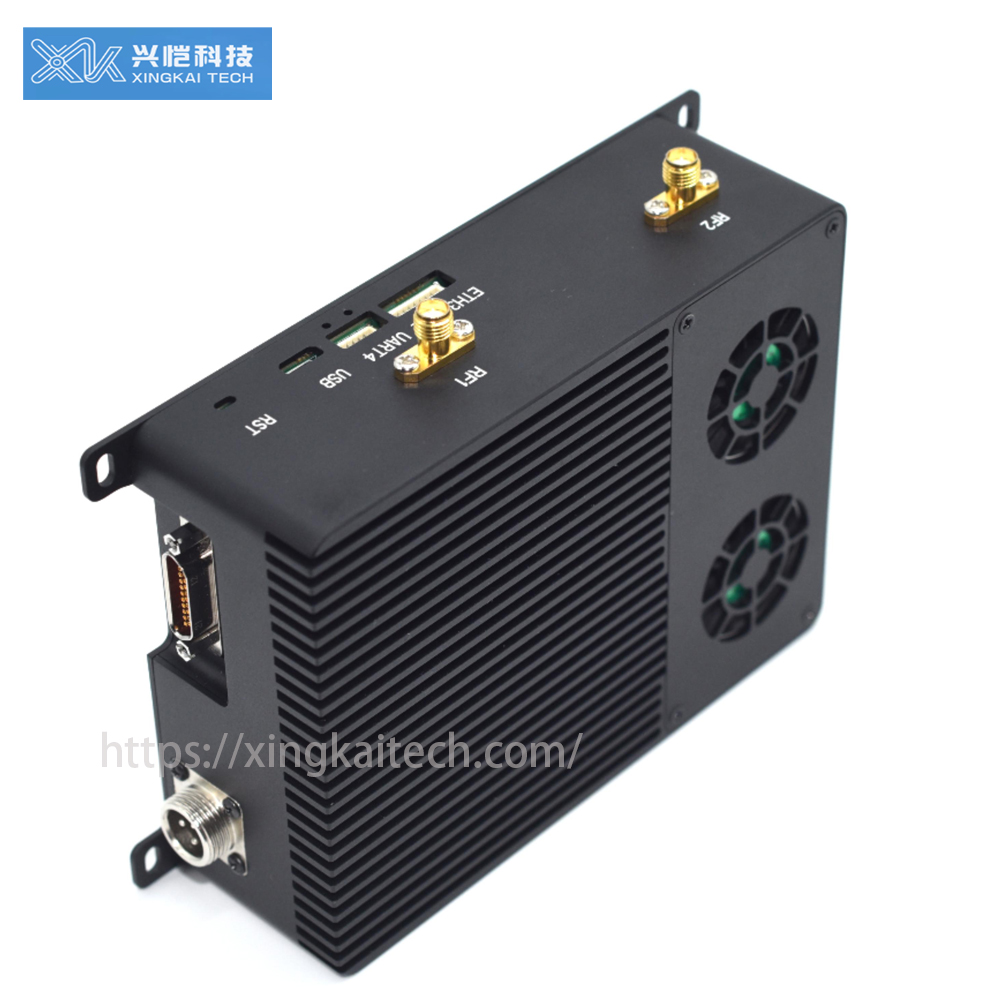

2*10W AIRBORNE MIMO MESH RADIO

MIMO Mesh Network

XK-M415E self-organised wireless transmission equipment, with small size, low power consumption, long communication distance and other characteristics, using no centre same frequency networking, multi-hop relay, each node device can be randomly and quickly move, the network topology can be updated with the rapid changes and does not affect the network transmission, support for high-definition camera encoded network data, flight control data, PTZ control data, remote control data and other data transmission at the same time.

  XK-M415E self-organising network is widely used in emergency rescue, traffic, mountain, forestry, water and air communication and other application scenarios by mesh networking.

2.1 Product features

* Self-assembling network with no centre and same frequency;

* Maximum bandwidth support is 100Mbps;

* Up to 100km transmission distance;

* Automatic detection of interference signals, real-time selection of the optimal frequency point work;

* Automatic retransmission of burst error data to improve data reliability;

* Automatically adjusts channel modulation based on signal quality in real time;

* Support OTA upgrade, support local and remote upgrade;

* Supports maintaining normal communication at 300km/h relative movement speed between nodes;

* Support to meet the basic configuration and check device information through WEBUI.

2.2 Product functions

• The operating frequency band can be customised to 600MHz/1.4GHz;

• Adjustable bandwidth, 3MHz, 5MHz, 10MHz, 20MHz, 40MHz (optional);

• 64QAM, 16QAM, QPSK multiple code rate adaptive;

• The same frequency supports a maximum of 32 nodes and a maximum of 31 hops;

• Supports unicast, multicast, and broadcast services;

• QoS priority is supported;

• AES128, SNOW, ZUC encryption, supports user-defined encryption;

• Centreless self-organising network for point-to-point,point-to-multipoint, relay and other applications;

• Supports multiple serial ports, SBUS;

• Supports simultaneous transmission of up to 3 network port devices.
