FHSS MANET 2*2W Airborne Mimo Mesh Radio XK-F355

inquiry now

Introducing the 2*2W Airborne MIMO Mesh Radio XK-F355

The broadband mimo mesh networking XK-F355 is a mobile broadband multimedia communication system designed with the new concept of “wireless grid network”.

The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel voice, data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement.

The whole network is convenient to deploy, flexible to use, simple to
operate and easy to maintain. It can provide users with reliable, timely,
efficient and secure full IP clear voice, broadband data, high-definition video
and visual command and scheduling and other multimedia integrated services
under complex application scenarios such as fast movement and non-line-of-sight
shielding.

The broadband self-organizing network can be widely used in the military, public security, armed police, fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, water and air communications and other sectors, providing users with reliable, timely, Rich integrated services such as safe and efficient voice, data, video and visual command and dispatch can meet users’ wireless broadband communication needs in normal or emergency situations to the greatest extent, and truly achieve “anytime, anywhere on demand”.

Performance:

• Mesh network(self-forming,self-healing,self-adapting),high-speed throughput
• Non-visual urban construction jungle multi-path transmission terrain, effective connection
• High-speed movement of ground,water and air,effective connection
• Multiple antenna settings,omni directional,high gain orientation or mixing
• GPS and Multicast Support

In today’s fast-paced world, communication plays a vital role in every aspect of our lives. From personal to professional, communication has become an essential element of our daily routine. With the advancement of technology, the communication industry has also seen a significant evolution in the past few years. One of the most innovative and revolutionary technologies in the communication industry is Airborne MIMO Mesh Radio XK-F355 by XingkaiTech.

Airborne MIMO Mesh Radio XK-F355 is a wireless communication system that provides reliable, high-speed, and long-range connectivity. It uses the MIMO (Multiple-Input and Multiple-Output) technology, which allows multiple antennas to transmit and receive data simultaneously, resulting in improved network performance. Moreover, it uses a mesh network architecture, where all the devices act as nodes and communicate with each other, creating a self-organizing and self-healing network. The system is designed to operate in harsh environmental conditions, making it ideal for industrial, military, and public safety applications.

In this article, we will explore the benefits of Airborne MIMO Mesh Radio XK-F355 and how it can transform the communication industry.

High-Speed Connectivity

Airborne MIMO Mesh Radio XK-F355 offers high-speed connectivity, with data rates up to 866 Mbps. The system uses the IEEE 802.11ac Wave 2 standard, which supports 2×2 MIMO, allowing two antennas to transmit and receive data simultaneously. This results in faster data transfer rates, improved network performance, and reduced latency.

Long-Range Coverage

The system provides long-range coverage, up to 20 kilometers, without any loss of signal quality. The long-range coverage makes it ideal for applications that require connectivity over a large area, such as surveillance, border control, and disaster management.

Self-Organizing Network

Airborne MIMO Mesh Radio XK-F355 uses a mesh network architecture, where all the devices act as nodes and communicate with each other. The mesh network creates a self-organizing and self-healing network, where the nodes can automatically discover and connect with each other, without the need for a central controller. This results in a highly reliable and fault-tolerant network, where the failure of one node does not affect the entire network.

Harsh Environment Resilience

The system is designed to operate in harsh environmental conditions, such as extreme temperatures, humidity, and vibration. It has a ruggedized housing and is certified to meet the MIL-STD-810G and IP67 standards, making it ideal for industrial, military, and public safety applications.

Easy Installation and Maintenance

Airborne MIMO Mesh Radio XK-F355 is easy to install and maintain. The system supports multiple deployment options, such as pole-mounted, wall-mounted, and standalone. Moreover, it has a user-friendly web interface, which allows easy configuration and monitoring of the network. The system also supports remote management, which reduces the need for on-site maintenance.

Advantages:

• Increased 4.5 times coverage in densely populated areas
• The same communication range and transmission volume,reducing transmission power by 10 times
• Increase the distance by 2 times in the visible limit environment
• Increase 2-4 times transmission rate

Significant applications in Non Line of Sight /Multi path Fading environments, video/data/voice critical communications:

Performance indicators

performance
wave form	Mobile network MIMO（MN-MIMO）
MIMO technology	Space time coding, spatial diversity, TX/RX beamforming, spatial multiplexing
Receiving sensitivity	-103dBm@5MHz BW
Working channel bandwidth	2.5/5/10/20MHz Settable，40MHz Optional configuration；FDD dual antenna cross frequency transceiver (CA carrier aggregation) optional configuration
transmission speed	1-100Mbps（20MHz BW）/180Mbps（40MHz BW）self-adaption
Modulation method	TD-COFDM，BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM self-adaption
Working frequency band	600MHz、900MHz、1.2GHz、1.4GHz(Regular)；300MHz-6GHz(Customized)
RF output power	2W*2
Single hop communication distance	100-200KM(Intervisibility)，1-30KM(Urban area)
communication mode	Distributed decentralized point-to-point/point-to-point/many to many, layer 2 or layer 3 dynamic routing, multi hop relay, star/linear/mesh/hybrid dynamic
Single hop delay	average 7ms（20MHz BW）
Secure encryption	DES，AES128/256，SNOW3G/ZUC Optional configuration
Anti interference working mode	Channel selection for manual spectrum scanning, full band enhanced intelligent options (spectrum sensing)/full band adaptive frequency hopping/roaming mode selection
Local/Remote Management	Parameter settings such as working frequency, channel bandwidth, network ID, transmission power, spectrum scanning, real-time display and statistical recording of network topology, link field strength signal-to-noise ratio, upload and download traffic, node to node distance, GPS/BeiDou electronic map, temperature/voltage/interference monitoring, software upgrade.
other	The startup time is less than 28 seconds, and the network access/update/switch time is less than 1 second.There is no limit to the capacity of a single system user (256 or more), and there is no limit to the number of self-organized network hops (15+data hops, 10+voice hops, and 8+video hops). The total loss of multi hop bandwidth is less than 70%.Automatic carrier tracking, adapted to ± 6kHz frequency offset and Laplace frequency shift, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second).
environment
working temperature		-40℃~+80℃
Protection level		IP66，IP67/IP68 customization
Whole machine structure
colour		black
size		110*62*20 mm
weight		160 g
other
Voltage range		DC  9-28V

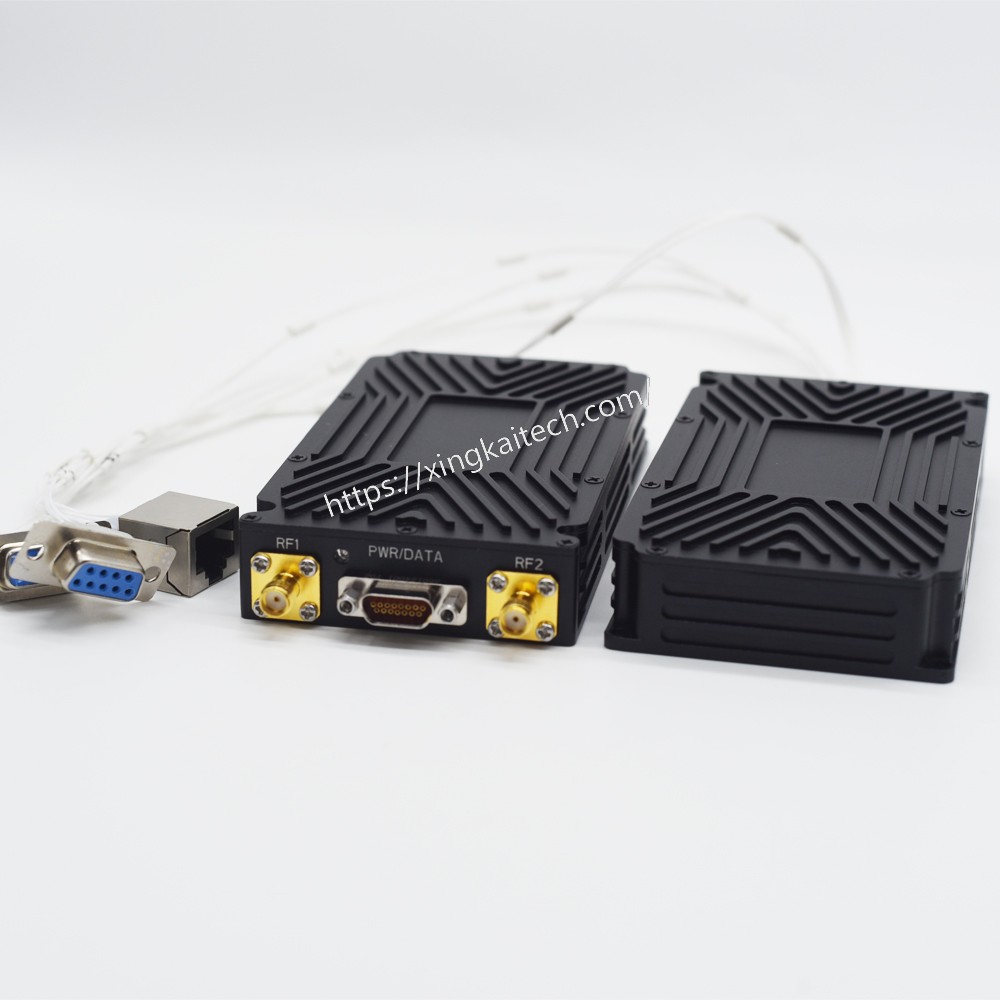

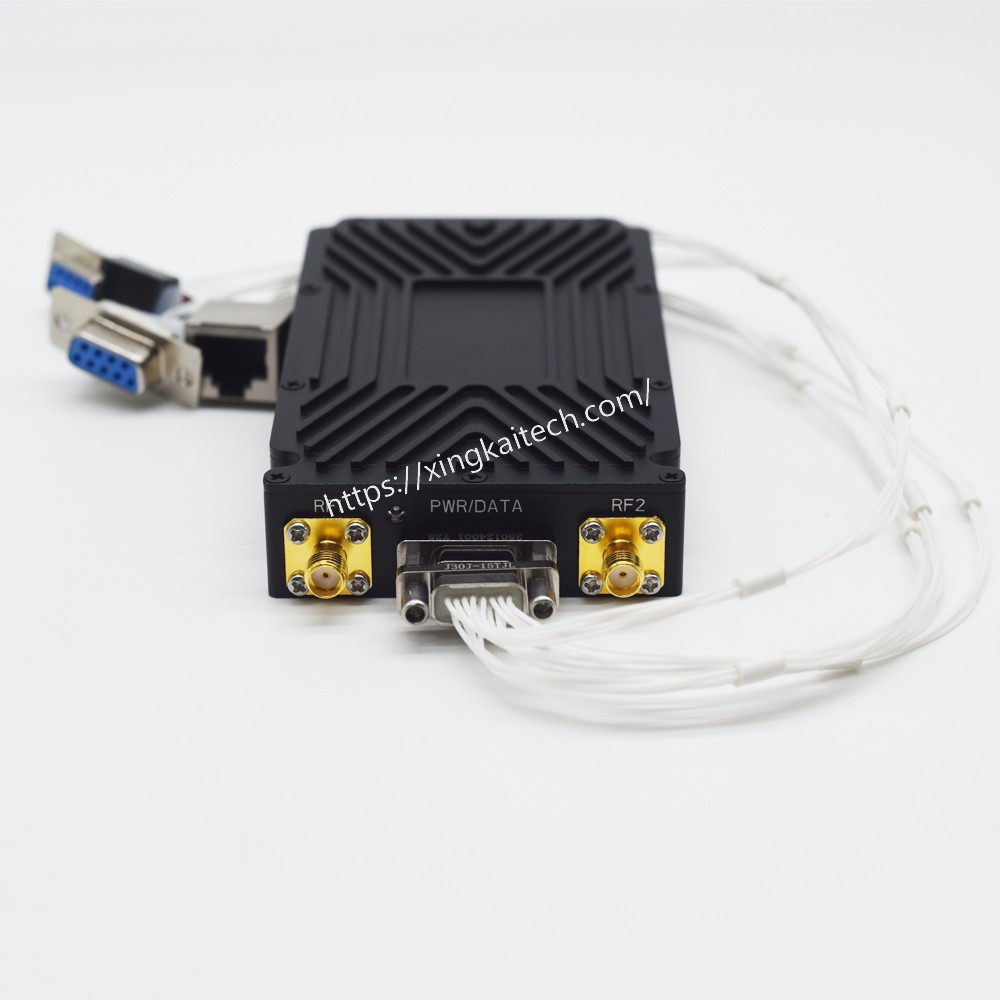

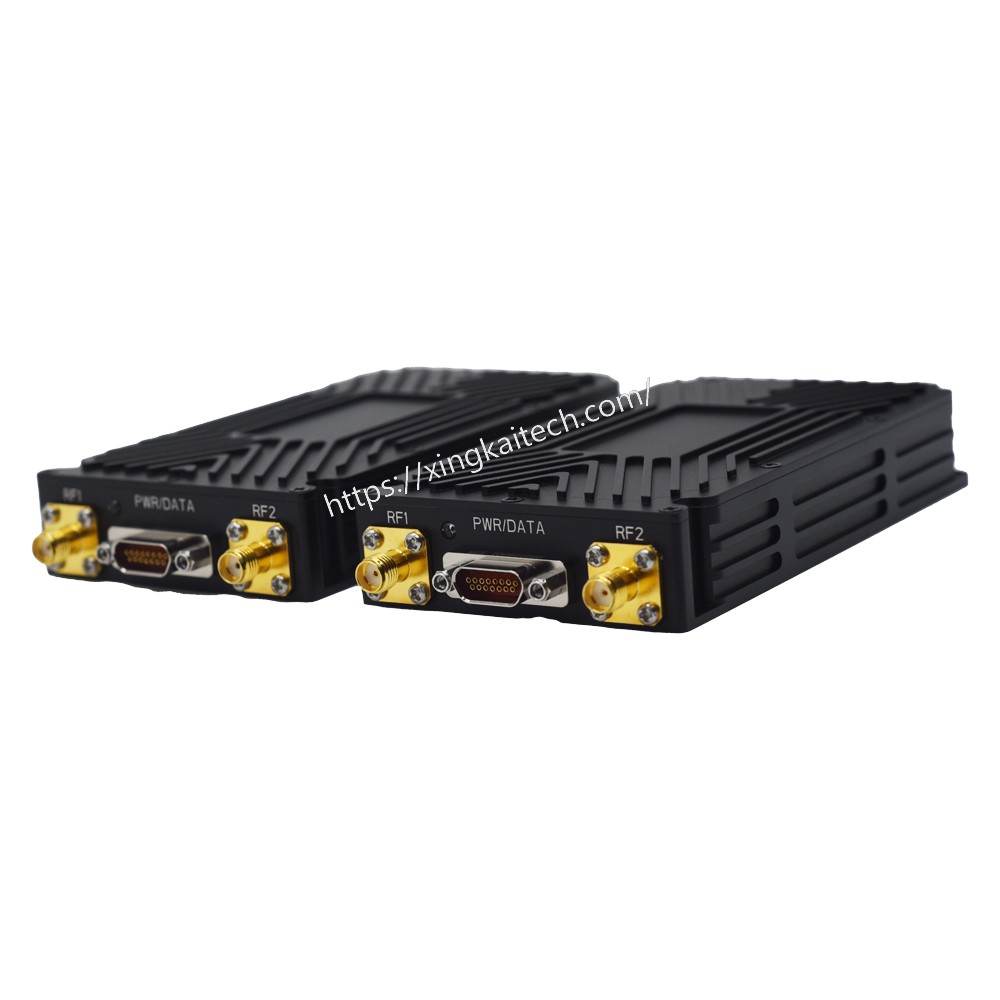

interface		2*TNC RF，1-3*RJ45 Ethernet 100/1000BaseT，RS232/TTL（UART），WiFi AP，GPS/ Beidou，DC input
