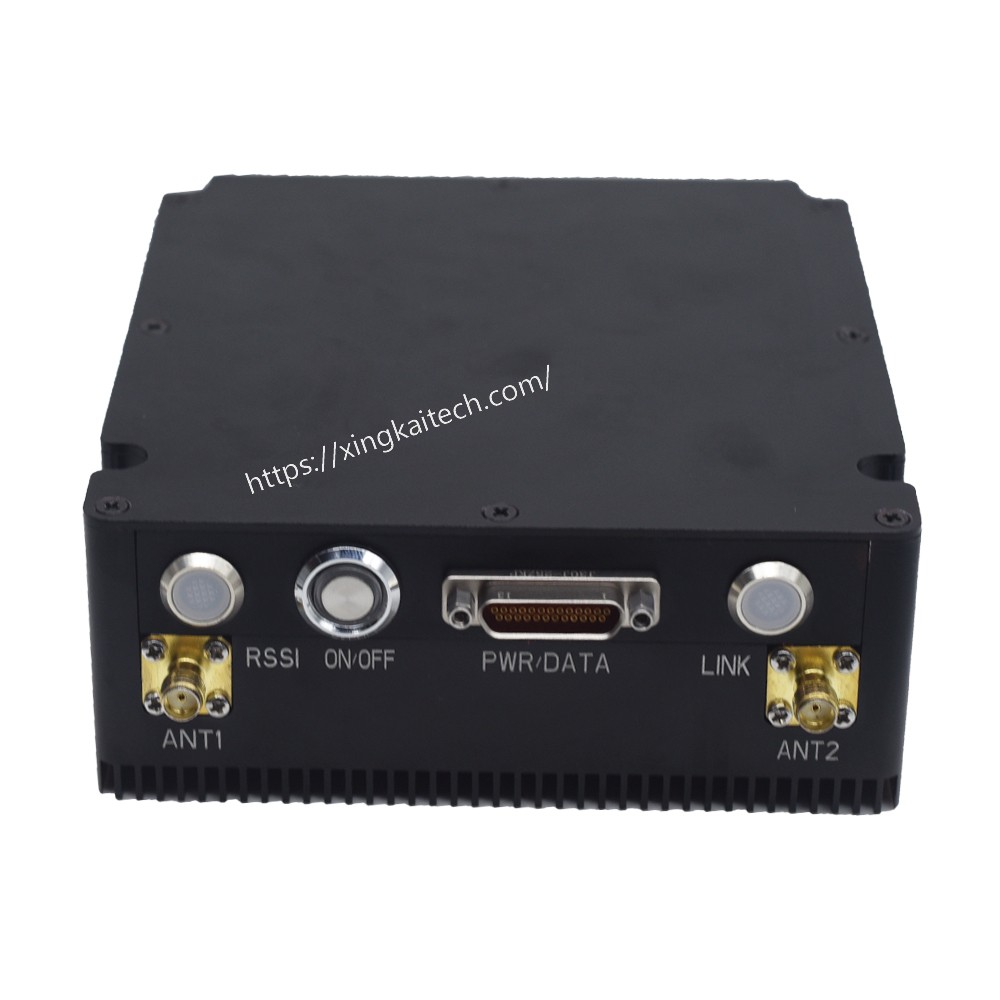

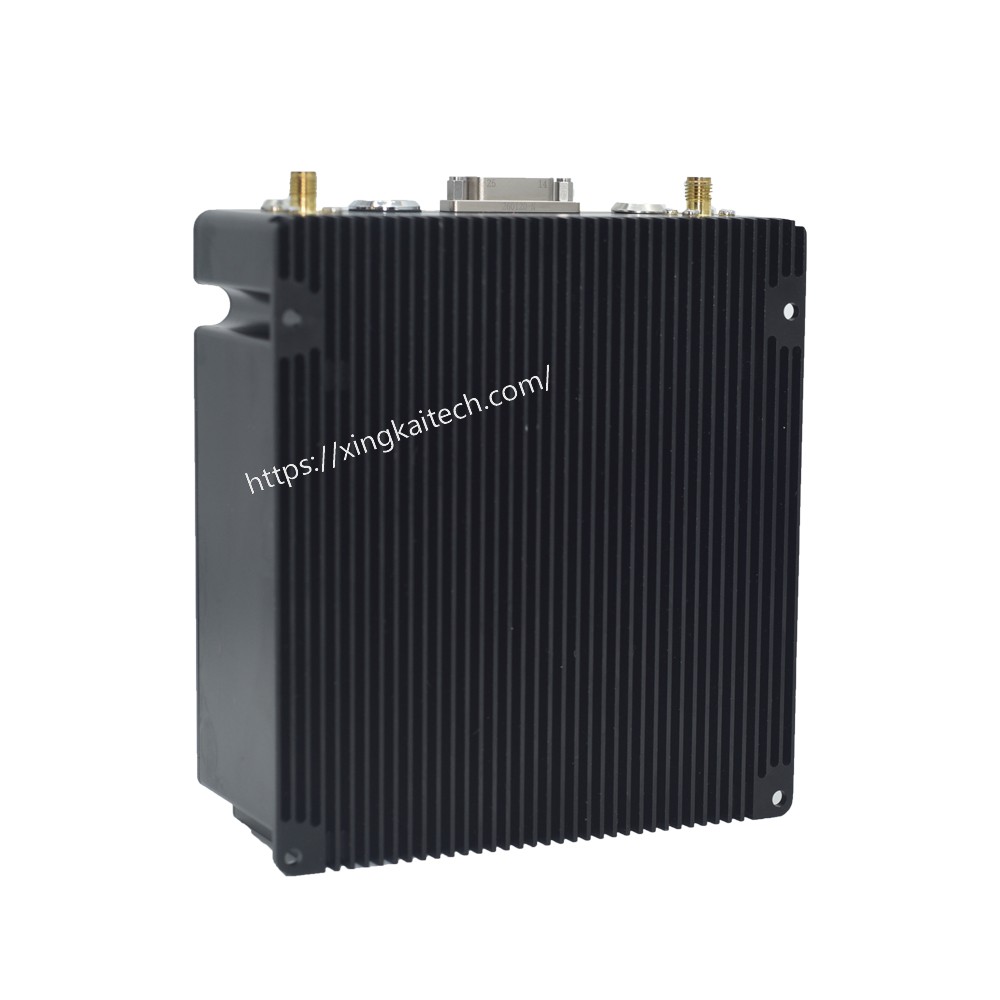

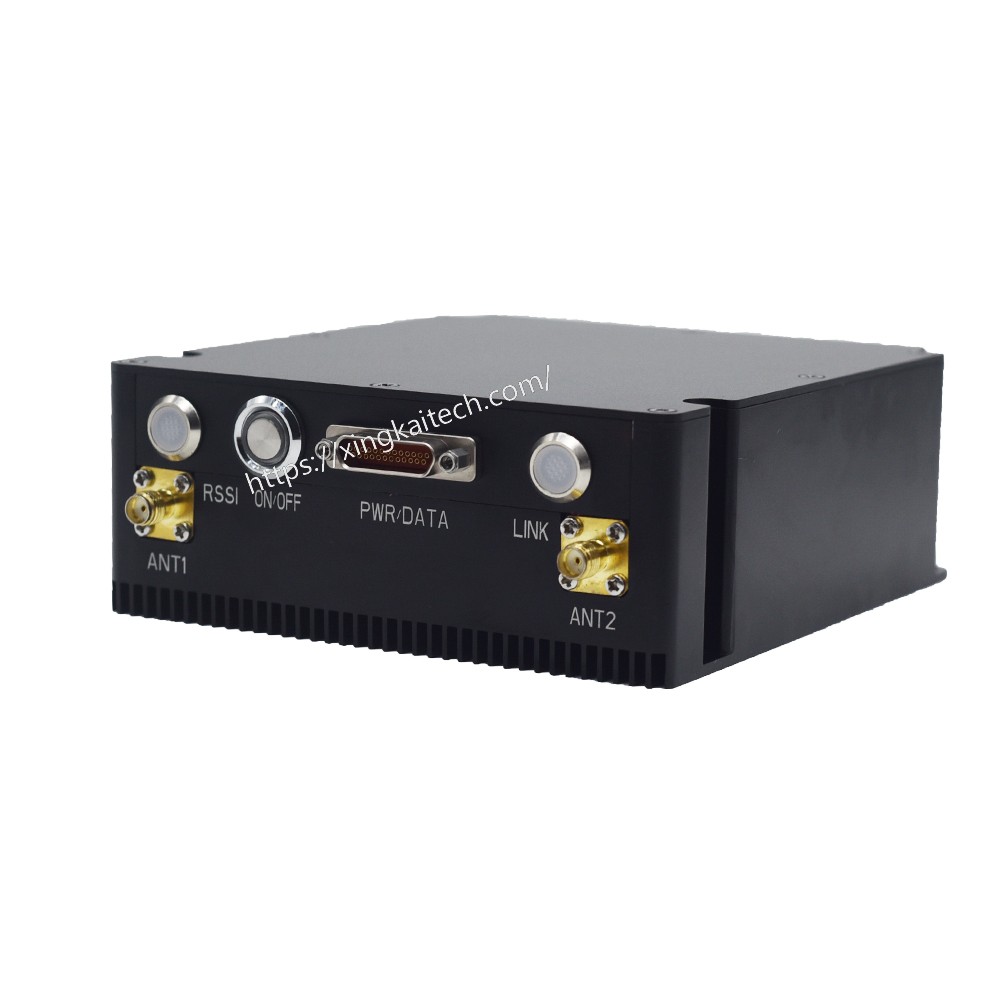

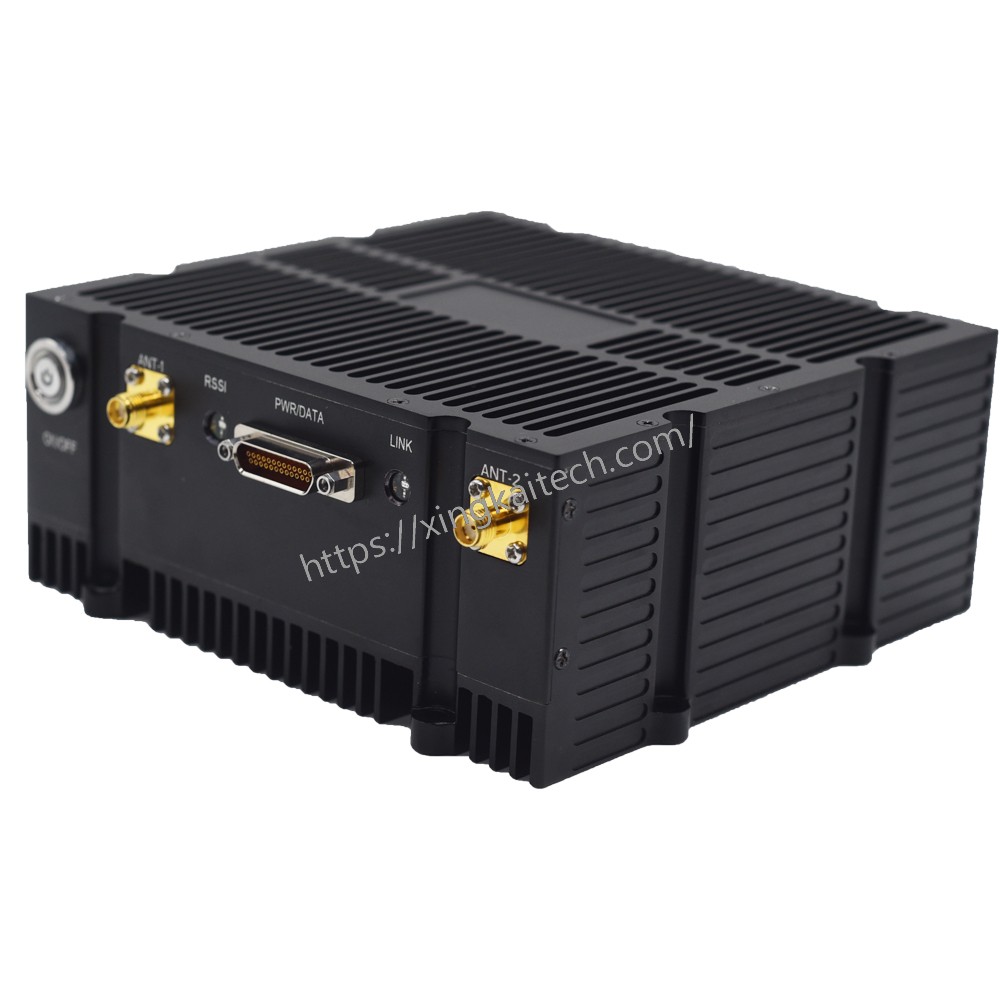

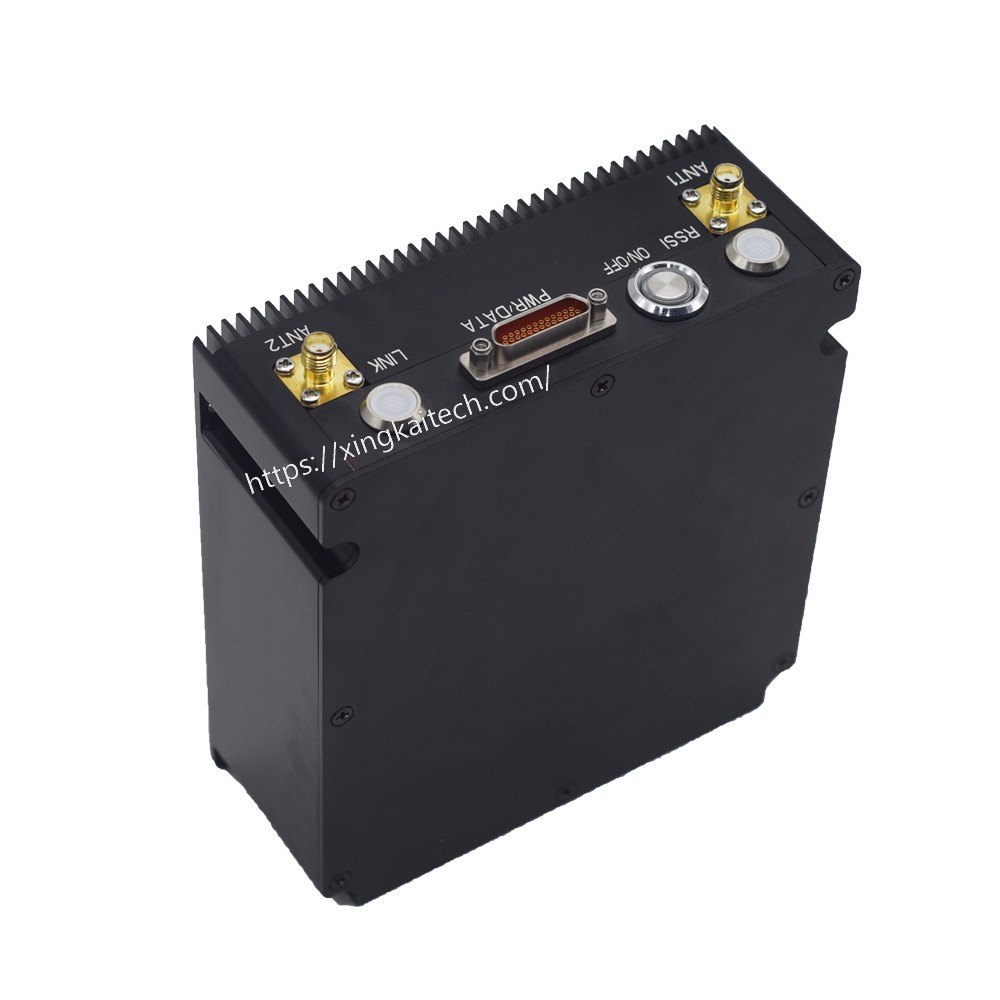

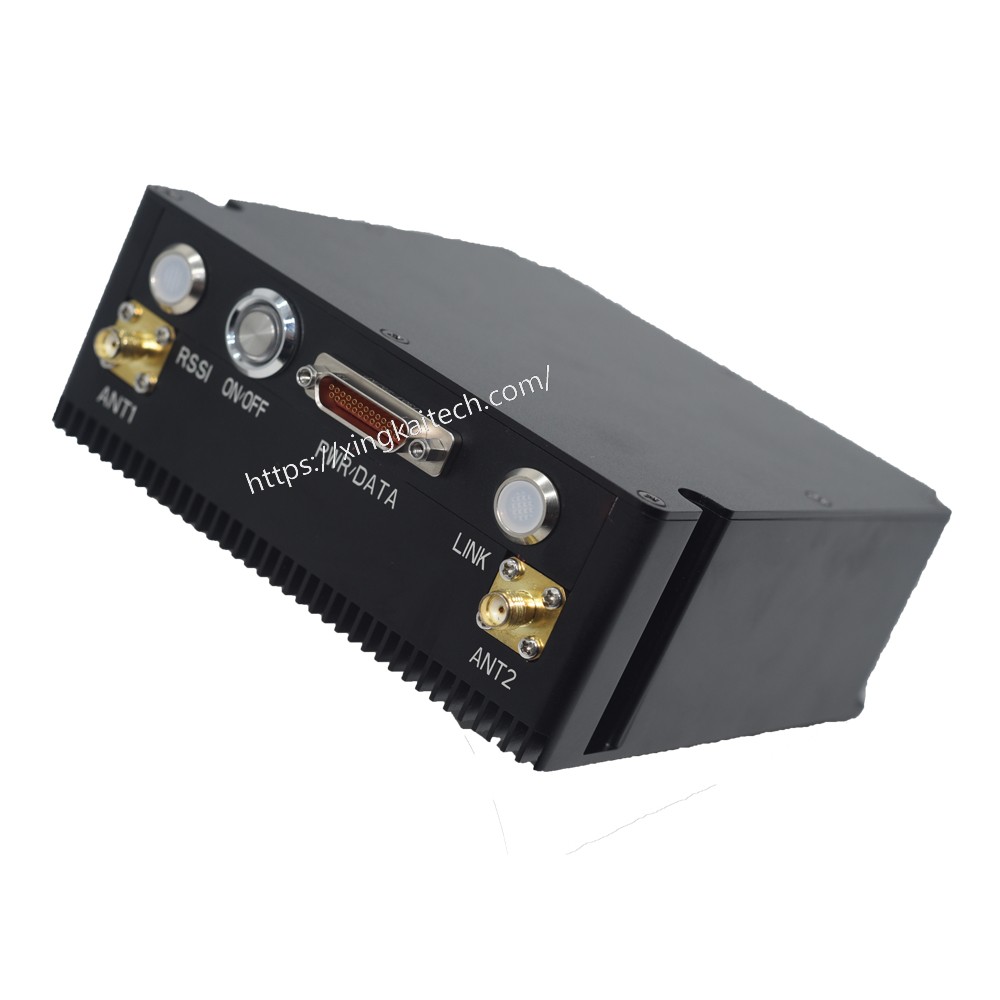

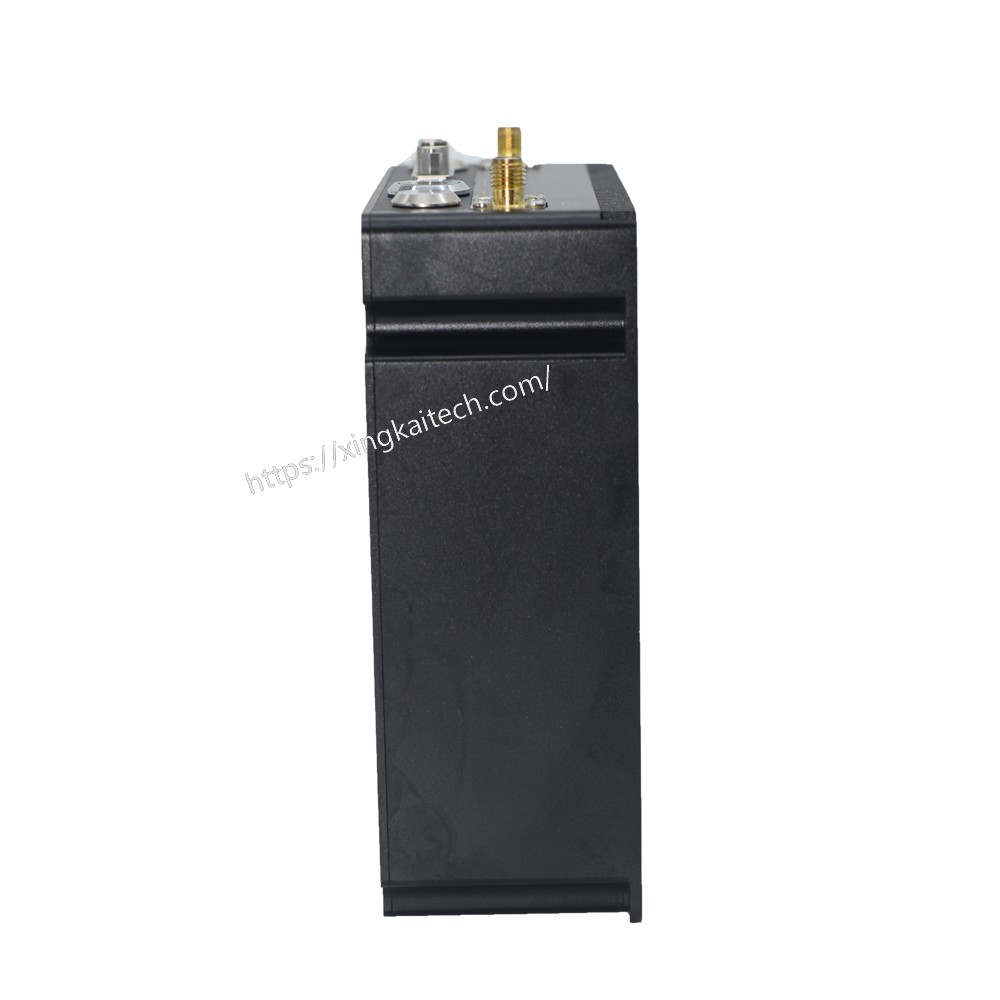

MIMO Mesh Network XK-m505e 2*10W

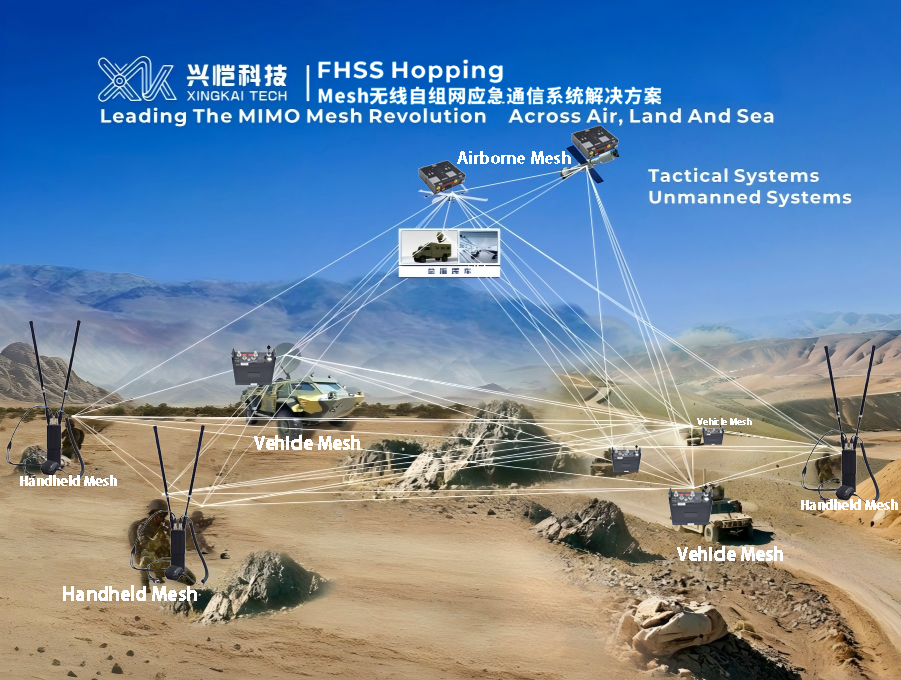

The Airborne Mesh Radio XK-M505E is a mobile broadband multimedia communication system designed with the new concept of “wireless grid network”.The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement. Supports any network topology, such as point-to-point, point-to-multipoint, chain-like relay, mesh network and hybrid dynamic topology.

Significant applications in Non Line of Sight /Multi path Fading environments, video/data communications:

*Robot/Unmanned Vehicle,Reconnaissance/Surveillance/Anti-Terrorism/Monitoring

*Air-to-air&air-to-ground&ground-to-ground,public safety/special operations

*Urban network,emergency support/normal patrol/traffic management

*Inside and outside the building,firefighting/rescue and disaster relief/forest/civil air defense/earthquake

*TV broadcast wireless video/live broadcast

*Marine communication/high speed transmission on the opposite side of the ship

*Low deck wireless network/ship landing

*Mine/tunnel/basement connection

Technical Parameters

General
Waveform	Mobile Network MIMO (MN-MIMO)
MIMO Technology	Space-time coding、Space Diversity、TX /RX beamforming、Spatial multiplexing
Receive Sensitivity	-103dBm@5MHz BW
Channel Bandwidth	1.25/2.5/5/10/20MHz optional
Data Rate	1-100Mbps(20MHz BW) Adaptive,QoS
Modulation Mode	TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixedsetting optional)
RF Output Power(Support TPC, transmisson power control)	10Watts x2
Single HopCommunication Distance	100-300 KM (visible), 1-30 KM (urban area)
Mode	Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid
Single Hop Delay	Average 7mS (20MHz BW)
Encryption	DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine
Anti-jamming Mode	Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/ Roaming mode optional
Local/Remote Management	Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others	The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss of multiple hops is less than 70%.Automatic carrier tracking, adapted to a Doppler frequency deviation of ± 6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second).
*Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change)**
BAND	Frequency range (MHz)	BAND	Frequency range (GHz)
UHF	430-550/570-700/800-950,225-400/320-470*	S Band	1.6-1.8/1.8-2.0/2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9,1.6-2.3/1.9-2.7*
L Band	1000-1200/1300-1500,1200-1700*	C Band	4.4-5.0/5.25-5.85,4.2-5.2/5.5-6.0*
MIIT	336-344/512-582/566-626/606-678/1420-1520/1430-1444
Environmental
Operation Temperature	-40℃ ~+80℃
Protection Level	IP66, IP67/IP68 Customized

Mechanicl
Size/Weight	12511546mm/≤785g (10Watts×2 Airborne Black)
Color	Black
Installation	4 Mounting Holes
Power
Supply Voltage	18-32VDC (10Watts×2)
Power consumption	Operation 3-7A/Standby 0.7-0.9A@16.8V (10Watts×2)
Power Selection	Power Supply by Twist-Lock Battery or Main Cable
Interface
Basic interface	2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/Auxiliary interface	MIC, SP, PTT, GND, RS485/422, USB2.0 OTG
Network Extension Optional	Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
Video Extension Optional	Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator	Steady red – The network is not connectedBlinking red – Starting/not connected to the network Steady green – The network is connected
RSSI Link Indicator	Steady green – The link quality is excellent Steady Blue – The link quality is good Steady yellow – The link quality is mediumSteady purple – The link quality is slightly worse Steady red – The link quality is poor or link is down
Management Interface/Control Interface	Web-based network management/GUI, API for secondary development interface/ SNMP
