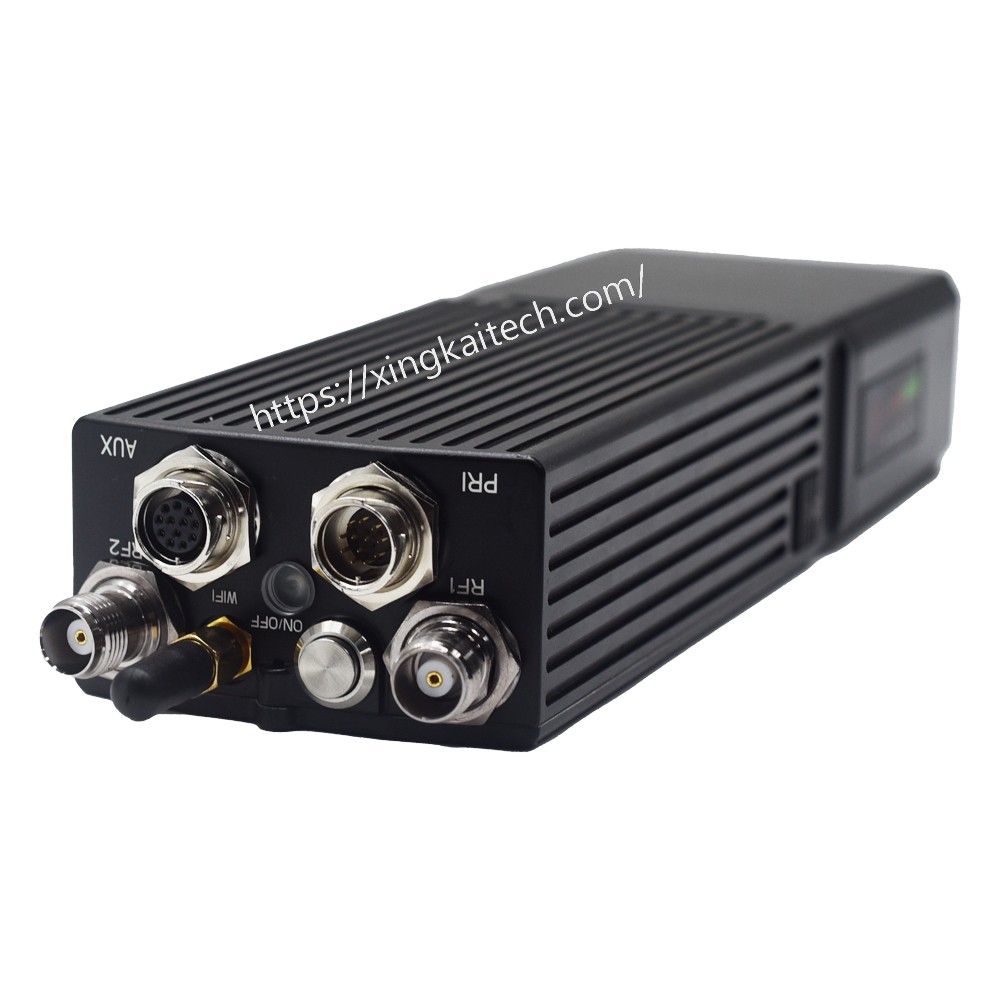

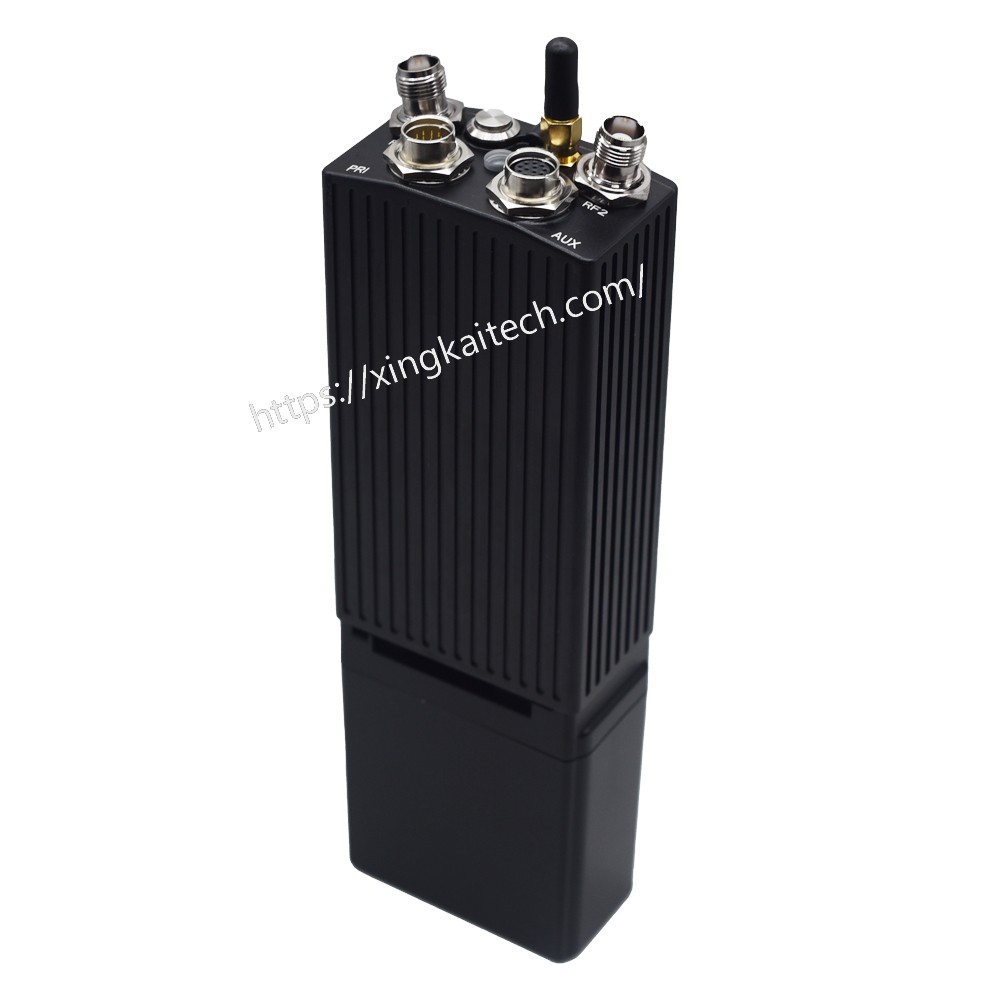

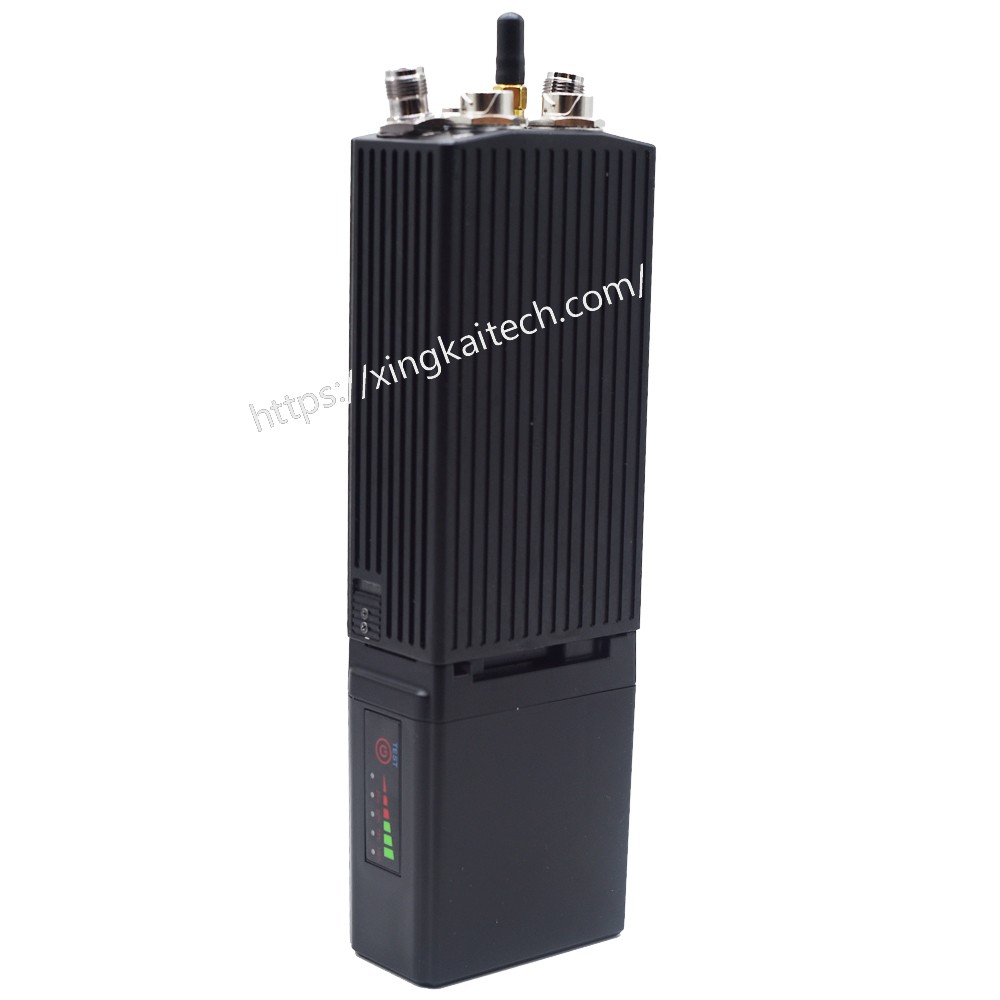

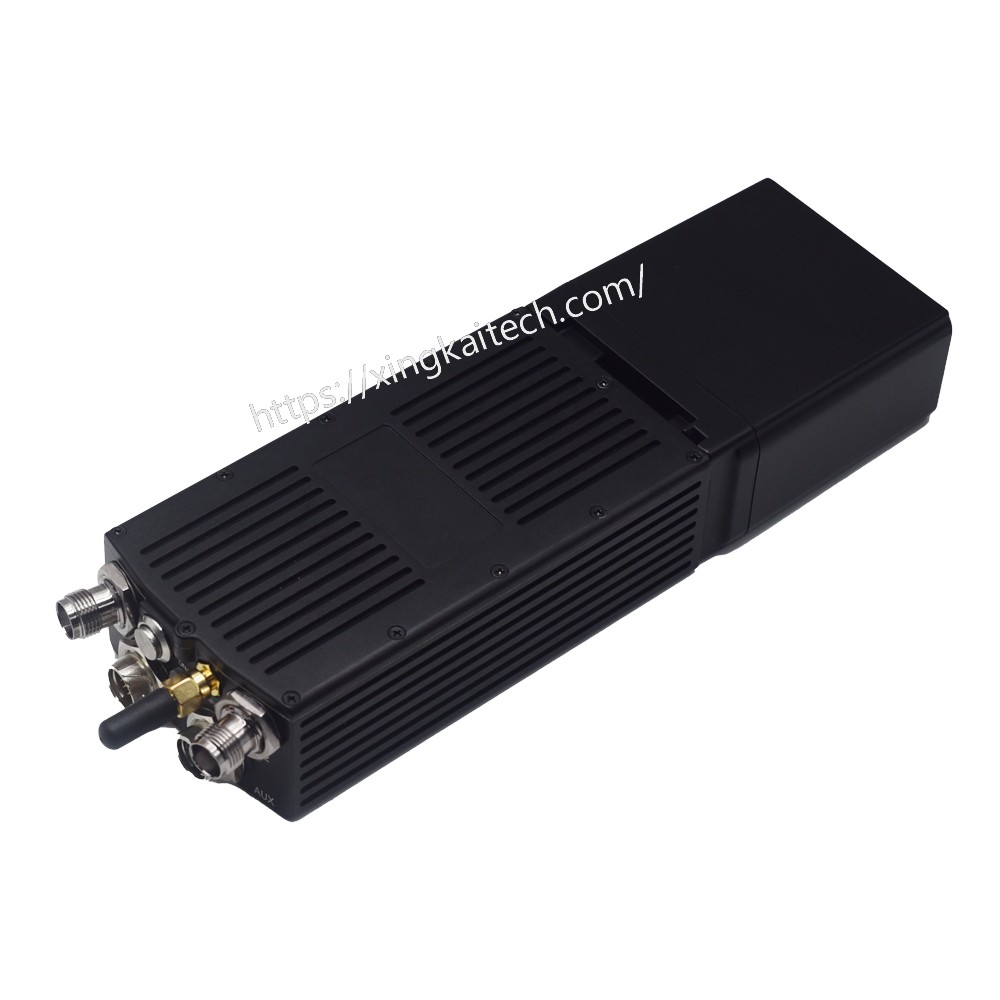

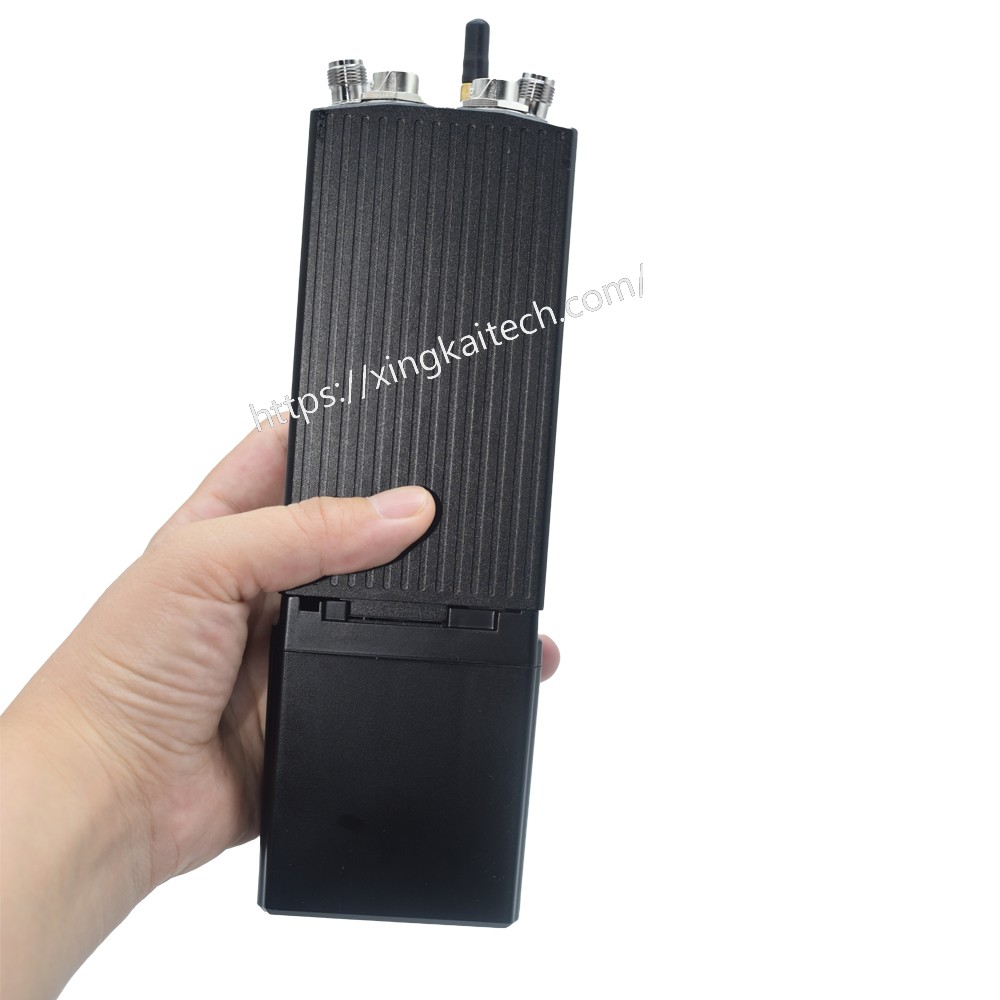

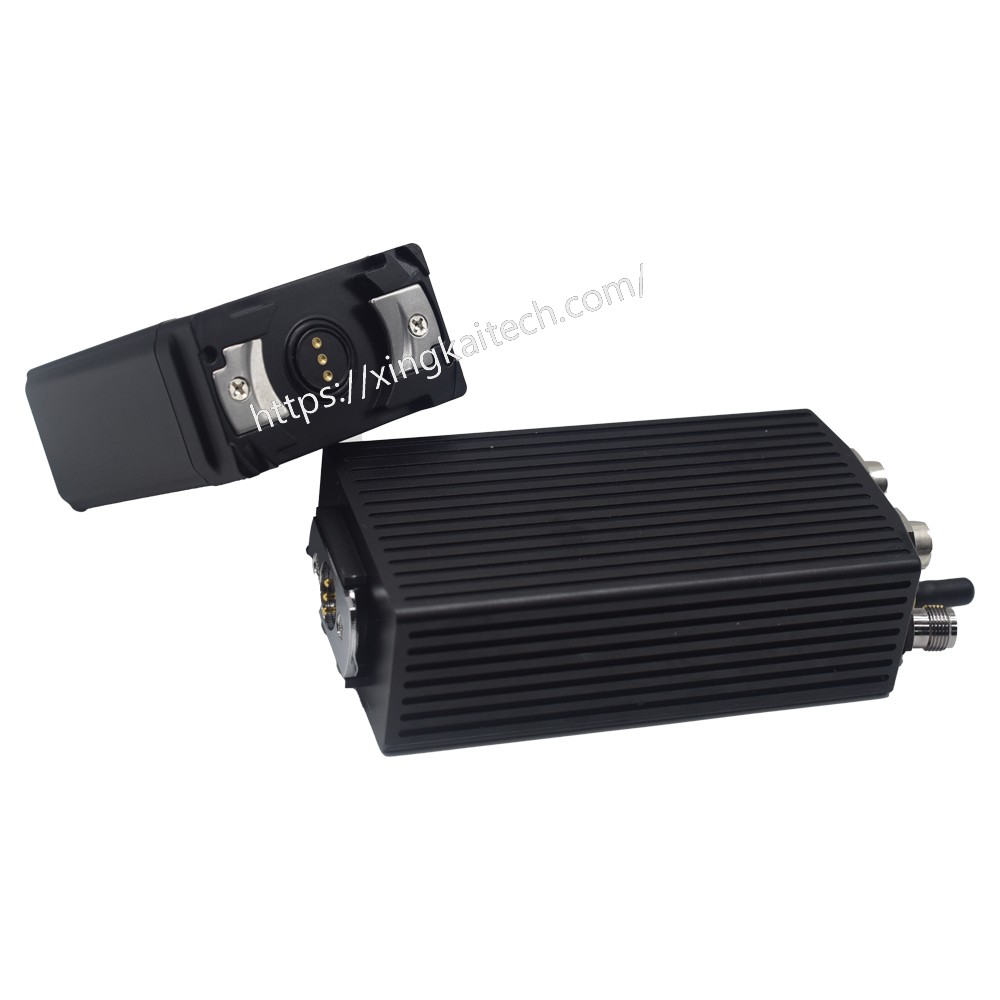

Broadband Handheld MIMO MESH RADIO XK-F357
The broadband mimo mesh networks XK-F357 is a mobile broadband multimedia communication system designed with the new concept of “wireless grid network”.
The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel voice, data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement. Supports any network topology, such as point-to-point, point-to-multipoint, chain-like relay, mesh network and hybrid dynamic topology.
The network adopts the same frequency networking and multi-hop relay. Each node device can move quickly and randomly, and the network topology can be changed and updated quickly without affecting the network transmission.
The whole network is convenient to deploy, flexible to use, simple to operate and easy to maintain. It can provide users with reliable, timely, efficient and secure full IP clear voice, broadband data, high-definition video and visual command and scheduling and other multimedia integrated services under complex application scenarios such as fast movement and non-line-of-sight shielding.
The broadband self-organizing network can be widely used in the military, public security, armed police, fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, water and air communications and other sectors, providing users with reliable, timely, Rich integrated services such as safe and efficient voice, data, video and visual command and dispatch can meet users’ wireless broadband communication needs in normal or emergency situations to the greatest extent, and truly achieve “anytime, anywhere on demand”.
Performance:
- Mesh network (self-forming, self-healing, self-adapting), high-speed throughput
- Non-visual urban construction jungle multi-path transmission terrain, effective connection
- High-speed movement of ground, water and air, effective connection
- Multiple antenna settings, omnidirectional, high gain orientation or mixing
- GPS and Multicast Support
Advantages:
- Increased 4.5 times coverage in densely populated areas
- The same communication range and transmission volume, reducing transmission power by 10 times
- Increase the distance by 2 times in the visible limit environment
- Increase 2-4 times transmission rate
Significant applications in Non Line of Sight /Multipath Fading environments, video/data/voice Critical Communications:
- Robot / Unmanned Vehicle, Reconnaissance / Surveillance / Anti-Terrorism / Monitoring
- Air-to-air & air-to-ground & ground-to-ground, public safety / special operations
- Urban network, emergency support / normal patrol / traffic management
- Inside and outside the building, fire fighting / rescue and disaster relief / forest / civil air defense / earthquake
- TV broadcast wireless audio / video / live broadcast
- Marine communication / high speed transmission on the opposite side of the ship
- Low deck wireless network / ship landing
- Mine / tunnel / basement connection
| Technical parameters | |
| Waveform | Mobile Network MIMO (MN-MIMO) |
| MIMO Technology | Spatial multiplexing,Space-time coding;Diversity,TX /RX beam forming |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 2.5/5/10/20MHz ,40MHz optional |
| Data Rate | 1-100Mbps(20MHz BW)/180Mbps(40MHz BW) Adaptive,QoS |
| Modulation Mode | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM adaptive |
| RF Output Power | 2Watts×2 (Handheld/Airborne/Module) |
| Single Hop Communication Distance | 100-300 KM (visible), 1-30 KM (urban area) |
| Mode | Point-to-point/Point-to-multi point/Multi point-to-multi point,Automatic relay, Star/Line/Network/Hybrid |
| Single Hop Delay | Average 10mS(20MHz BW) |
| Encryption | DES, AES128/256,Chip /TF card encryption customized |
| Anti-interference Mode | Manual spectrum scanning channel selection, Intelligent frequency channel Selection/Autonomous frequency hopping/Roaming mode optional |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, GPS/Beidou electronic map, temperature/voltage/interference Monitoring, software upgrade |
| Others | The startup time is less than 30 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on the user capacity of a single system and the number of hops in Mesh networks. The total bandwidth loss of multiple hops is less than 30%.Automatic carrier tracking, support over 800 km/h mobile communication |
| Bands | |
| BAND | Frequency range (MHz) |
| UHF | 350-700 |
| L Band | 1000-1500 |
| MIIT | 336-344/512-582/566-626/606-678/1420-1520/1430-1444 |
| S Band | 1800-2500 |
| Lower C Band | 4400-5000 |
| Upper C Band | 5100-6000 |
| Environmental | |
| Operation Temperature | -40ºC ~+80ºC |
| Protection Level | IP66,IP67/IP68 Customized |
| Mechanical | |
| Size/Weight | 19×6.8×3.8cm/0.769kg(with 11.1V/6.8AH battery Handheld Radio) 22×6.8×3.8cm/0.982kg(with 11.1V/10.2AH battery Handheld Radio) |
| Installation/Color | 4 Mounting Holes/Black,Lron Gray,Army Green Optional |
| Power | |
| Supply Voltage | 9-24VDC (2Watts×2 Handheld/Airborne/Module) |
| Power consumption | Operation 1-2A/Standby 0.4-0.6A@12V(2Watts×2 Handheld/Airborne/Module) |

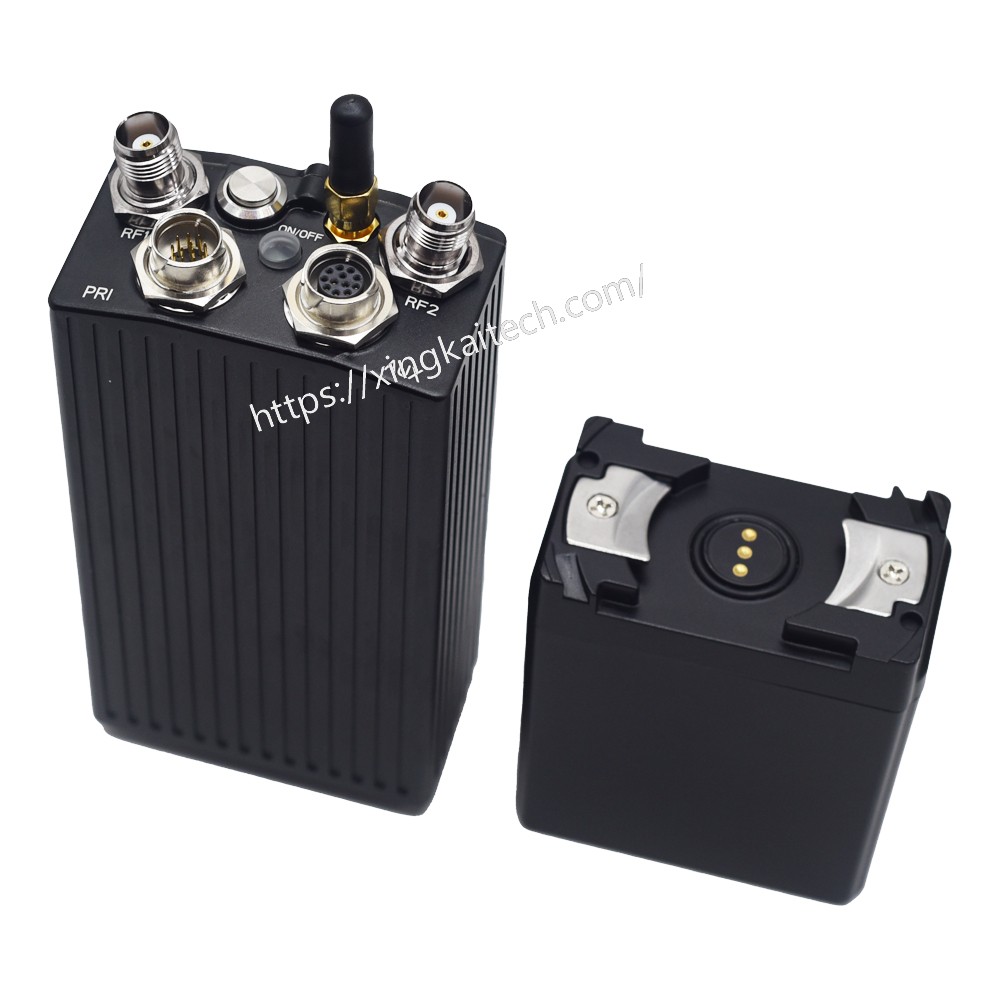

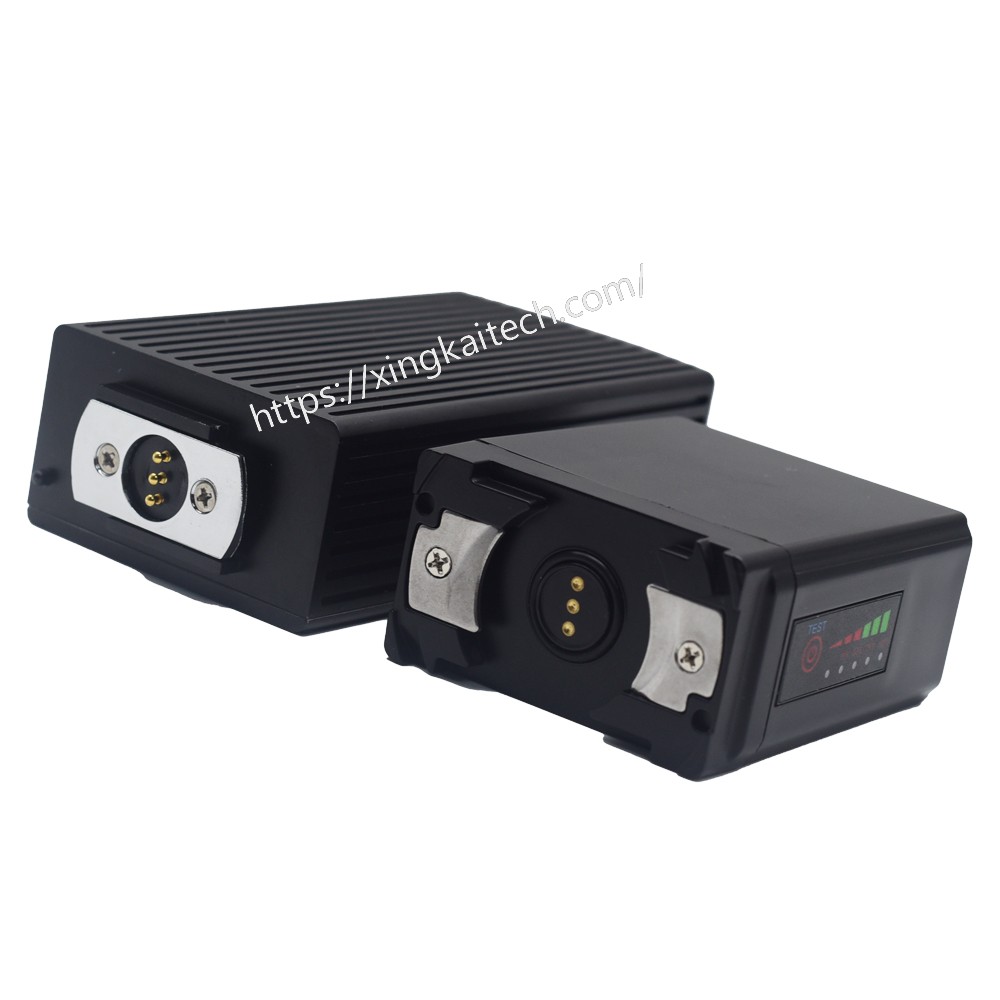

| Power Selection | Power Supply by Twist-Lock Battery or Main Cable |
| Batteries | 10/8 hours for 10.2/6.8AH (Handheld Radio) 12/8 hours for 28.8/9.6AH (Backpack Radio) polymer lithium battery |
| Interface | |

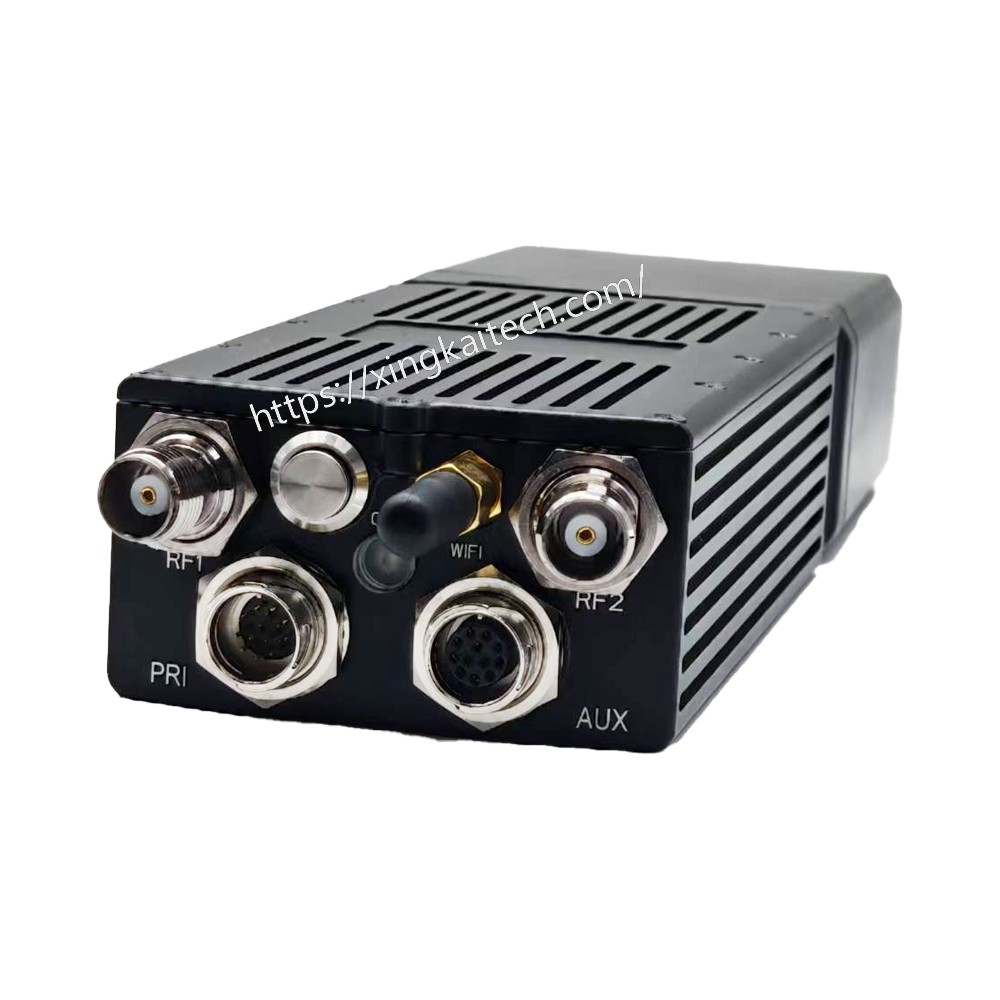

| Basic interface | RF 2xTNC,1-2xRJ45 Ethernet 10/100BaseT,WiFi AP, 1xRS232-485-422-USB-Bluetooth/1.2-230.4Kbps,DC Input |

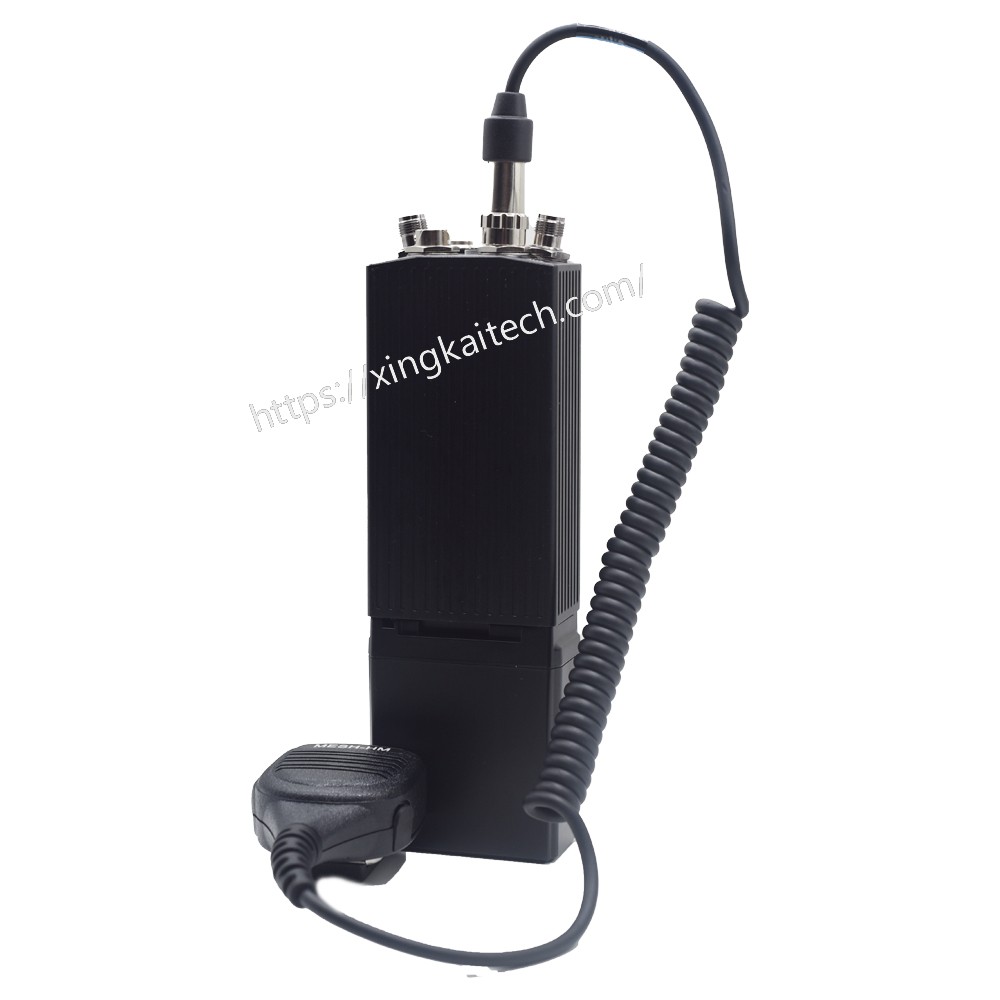

| Push to talk/Auxiliary interface | MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator | Steady red – The network is not connected Blinking red – Starting/not connected to the network Steady green – The network is connected Blinking green – Voice PTT is down |
| RSSI Link Indicator | Steady green – The link quality is excellent Blue Steady – The link quality is good Steady yellow – The link quality is medium Steady purple – The link quality is slightly worse Steady red – The link quality is poor or link is down |
| Management Interface/Control Interface | Web-based network management/GUI, API secondary development interface/SNMP |
| OEM | |
| Size/Weight | 10.1×5.4×1.9cm/123.5g |
| RF | SMP |
