6.1-7.2GHz 64CH VRX Video Receiver
Product Features:
Wide frequency coverage: 6~7GHz reception, 64 channels compatible with mainstream FPV bands.
High sensitivity: -98dBm receiver sensitivity, stable long-range signal without dropout.

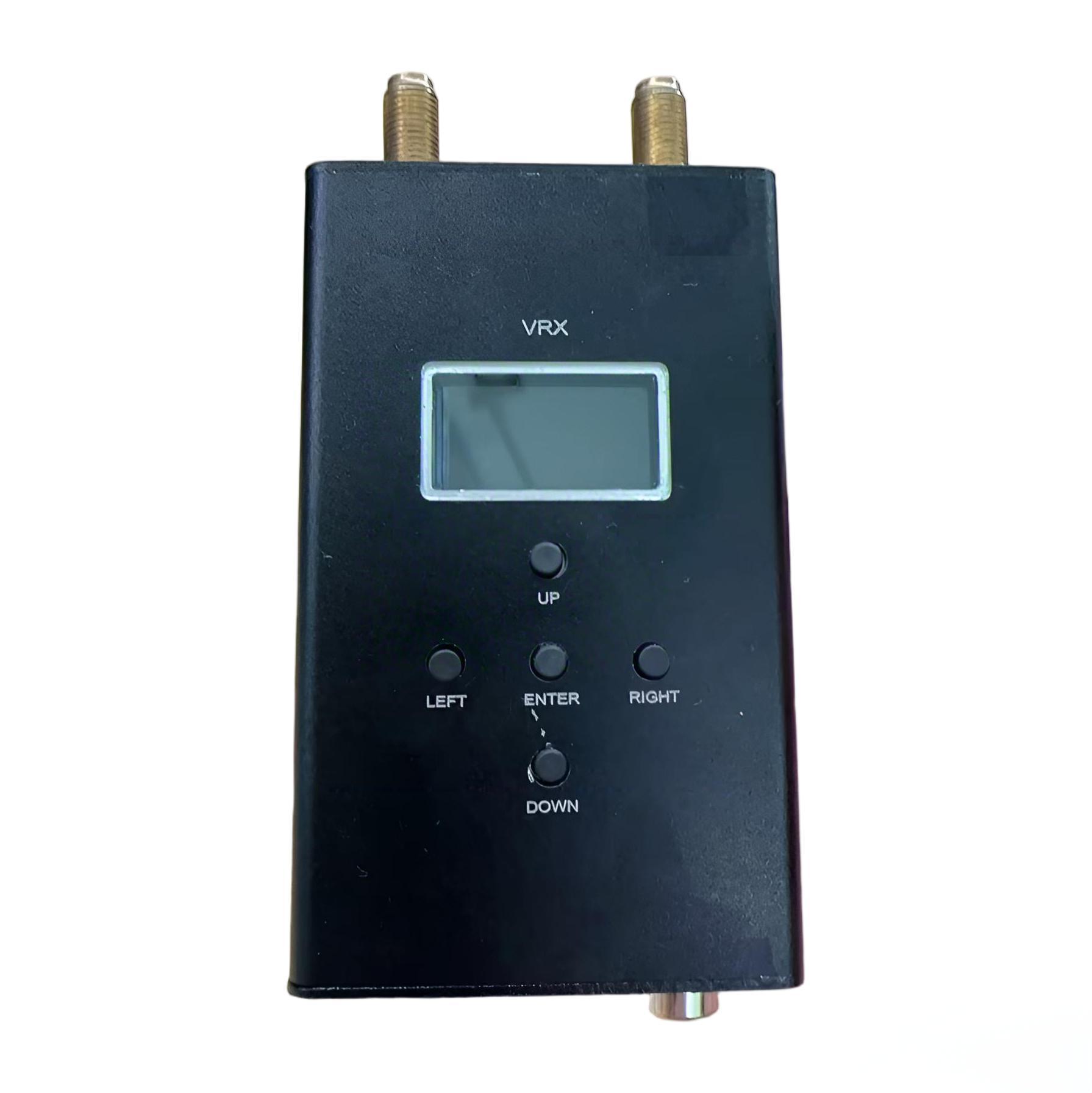

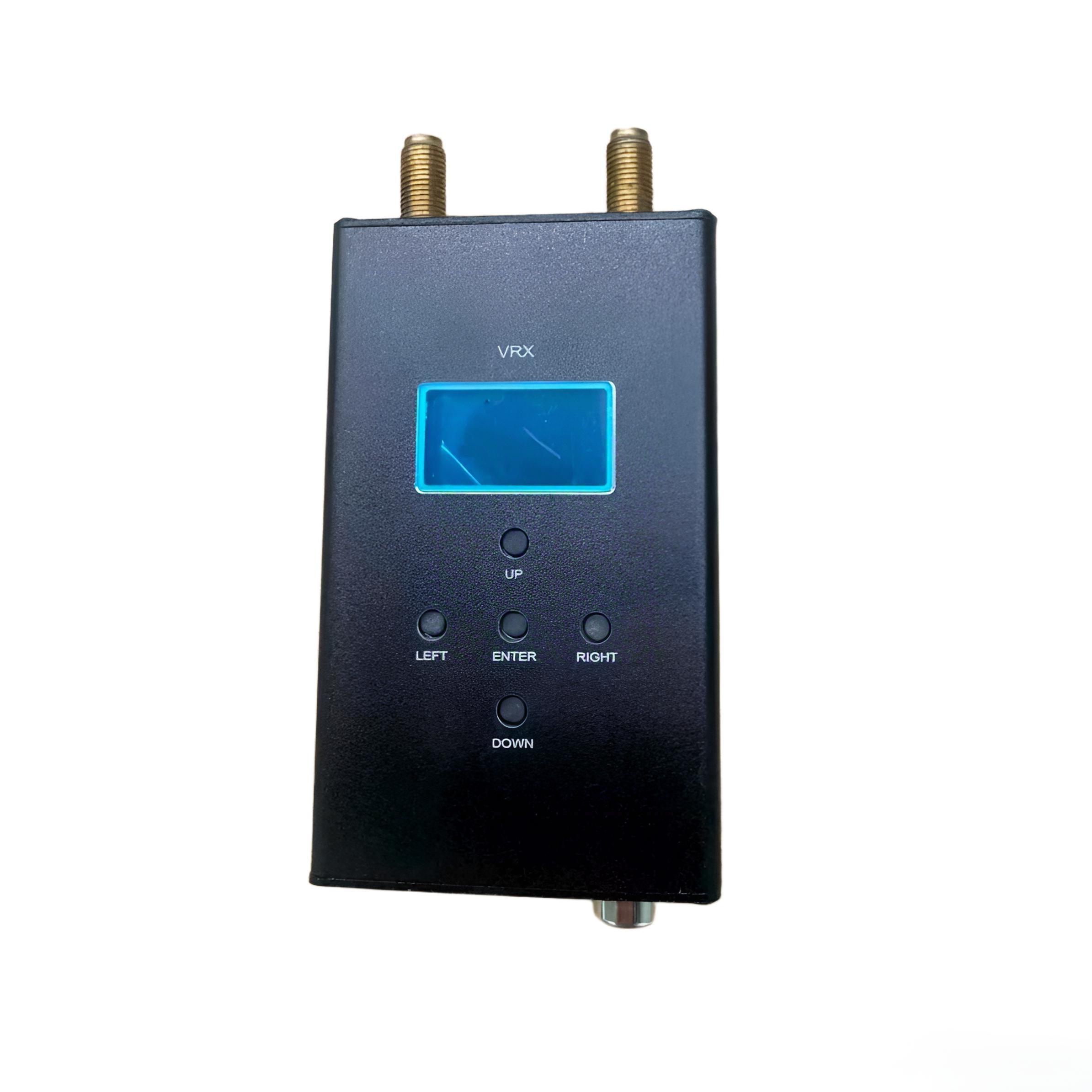

Real-time signal display: OLED screen shows band, channel and RSSI for easy debugging.
Low-latency video output: CVBS video output for FPV drone real-time video transmission.
High-definition image restoration: Video SNR ≥38dB, clear image and high transmission fidelity.
2. Operating Environment Specifications
Operating Temperature: -10°C ~ +65°C
3. Test Conditions
| Ambient Temperature | 25℃ |
| Video Input Voltage | 1.0Vp-p,150 (IRE) |
Technical Parameters
| Model Specifications | 6.1-7.2G |
| Power Supply | 5~28V |
| Current Consumption | 600mA（MAX) |
| Operating Temperature | -10~+65℃ |
| Storing Temperature | -30~+85℃ |
| Operating Humidity | 85% RH |
| Receiving Frequency Range | 6100 ~ 7200MHz |
| Voltage Standing Wave Ratio | < 1.5 |
| Demodulation System | FM/PLL |
| IF | 480MHz |
| Antenna Input Impedance | 50Ω, Typ. |
| LO Frequency Stabilization | ±100kHz |
| LO Frequency Precision | ±100kHz |
| LO Control | PLL |
| Input LO Leak | -55dBm |
| Receiving Sensitivity | -85dBm（minimumvalue） (IndoorInterference-FreeTestResults) |
| Input Level Range | -98dBm ~ +5dBm |
| Video Output impedance | 75Ω, Typ. |
| Video Output Level | 1Vp-p, Typ. |
| Video Polarity | NEGATIVE |

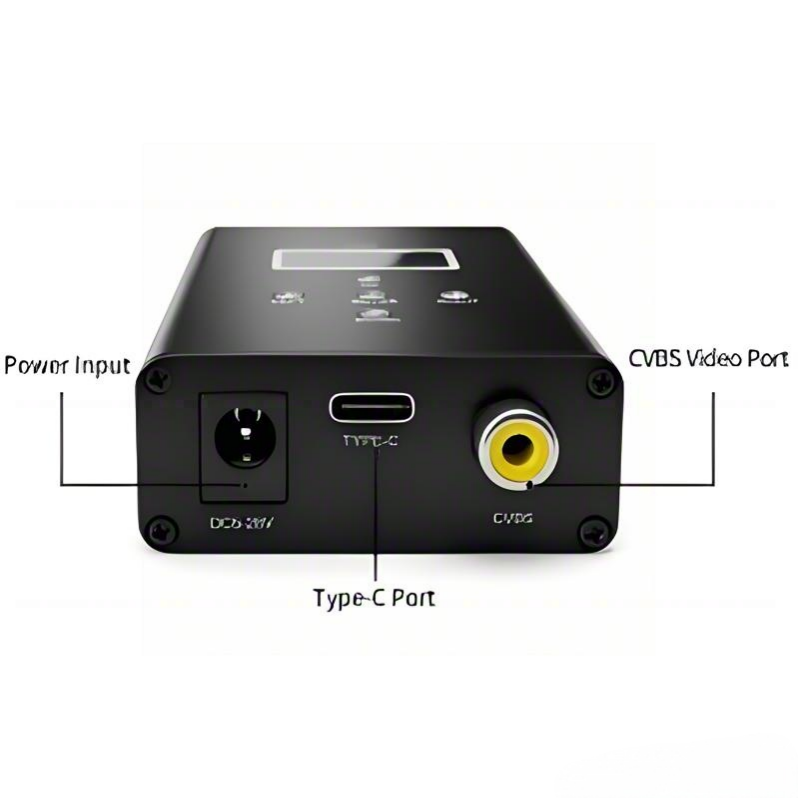

4. Product Dimensions & Interface Definition

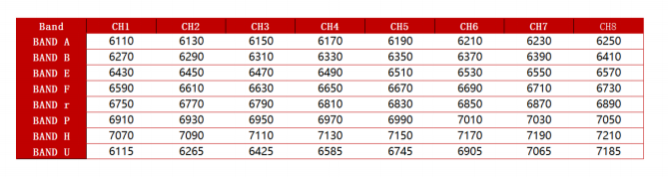

Band and Channel Frequency Table:
